Quick Adaptor Installation Guide

Product and preparation

The illustrations below show pipe preparation and assembly of the Quick Adaptor. Check the supplied product configuration before following the illustrated sequence.

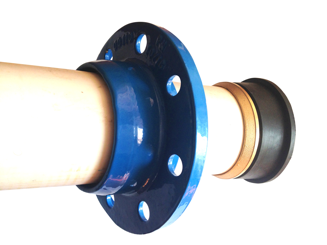

Quick Adaptor for PE / PVC pipes — illustrated configuration.

Illustration 1 · Pipe-end preparation

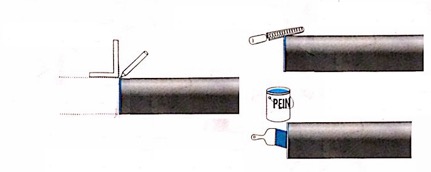

Pipe-end preparation: square cut, surface preparation and brush application. The applied material is not specified in this guide.

Illustration 2 · Component positioning

Component positioning for the illustrated assembly.

Connection sequence

Illustration 3 · Seating the assembly

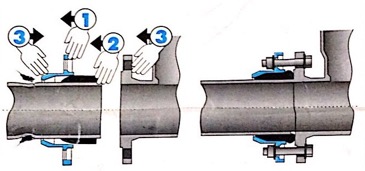

Sectional views of the components being seated and the flange connection assembled.

Illustration 4 · Tightening sequence

Eight-position tightening sequence, as illustrated. For a different bolt layout, use the sequence specified for that assembly. Bolt torque is not specified in this guide.

Numbered tightening sequence for the illustrated flange.

Illustration 5 · Fitting installation

The fitting is shown entering the gap between two pipe ends.

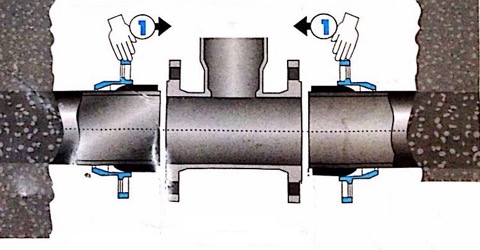

Fitting positioned between two Quick Adaptor connections.

Keep the matching document with the product.

Use the guide for the supplied configuration. For project-specific requirements, contact aquafitting@gmail.com and quote AQF-IG-QA-001.
