Quick Flange Adaptor for PE/PVC Pipes
Connect a PE or PVC pipe end to a flange. Choose the Standard or Lightweight generation, then select the pipe-specific configuration.
Pipe compatibility
PE or PVC, using the corresponding configuration. PE uses a brass grip; the documented PVC configuration does not.
Product overview
The AQUAFITTING Quick Flange Adaptor connects a PE or PVC pipe end to a flange using the corresponding pipe-specific configuration. Standard and Lightweight are two generations of this family. Select the generation separately from pipe material: the documented PE configuration uses a brass grip, while the PVC configuration does not use that brass grip.
Choose a generation
Standard: Original design generation. Lightweight: Later, reduced-weight design. Choose the generation first, then the PE or PVC configuration. Match the measured pipe OD and mating flange to the corresponding drawing.
Both generations offer a PE configuration with a brass grip and a PVC configuration without the brass grip. The separate generation documents are shown below. Size and configuration availability require confirmation.
View Standard catalogue section
Enquire: Standard / PE
Enquire: Standard / PVC
View Lightweight catalogue section
Enquire: Lightweight / PE
Enquire: Lightweight / PVC
Connection and selection
Generation
Standard and Lightweight are separate generations. Compare weight only for matching pipe material, grip configuration, size and included components.
Pipe configuration
Both generations list a PE configuration with a brass grip and a PVC configuration without that brass grip.
Generation documents

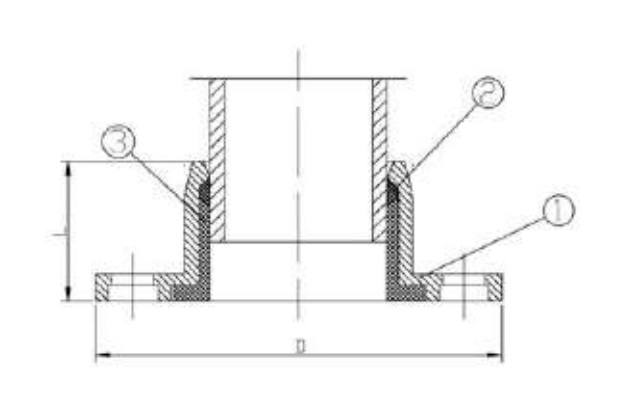

Use the separate Standard and Lightweight drawing and dimension references below. Do not substitute dimensions between generations.
Catalogue dimensions

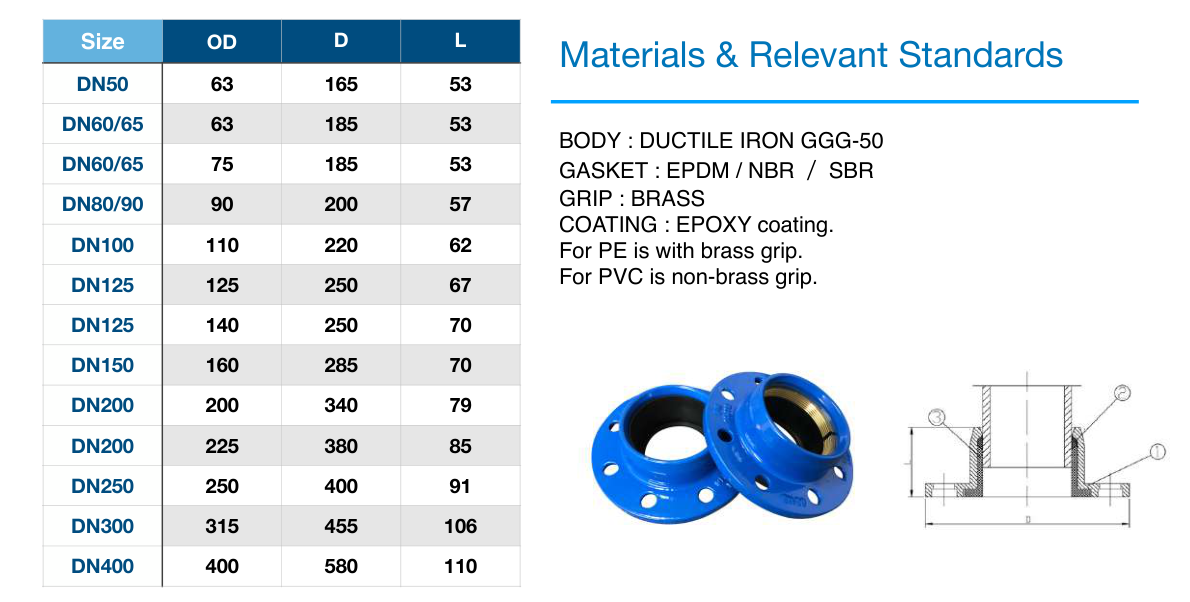

Source: AQUAFITTING English catalogue 2023, page 16. Dimension symbols follow the corresponding source drawing. Confirm the selected configuration and current dimensions before ordering. Standard is the upper source table; Lightweight is the lower source table. Select pipe configuration separately from generation.
| Size | Generation | Pipe OD | D | L |
|---|---|---|---|---|
| DN50 | Standard | 63 | 165 | 53 |
| DN60/65 | Standard | 63 | 185 | 53 |
| DN60/65 | Standard | 75 | 185 | 53 |
| DN80/90 | Standard | 90 | 200 | 57 |
| DN100 | Standard | 110 | 220 | 62 |
| DN125 | Standard | 125 | 250 | 67 |
| DN125 | Standard | 140 | 250 | 70 |
| DN150 | Standard | 160 | 285 | 70 |
| DN200 | Standard | 200 | 340 | 79 |
| DN200 | Standard | 225 | 380 | 85 |
| DN250 | Standard | 250 | 400 | 91 |
| DN300 | Standard | 315 | 455 | 106 |
| DN400 | Standard | 400 | 580 | 110 |

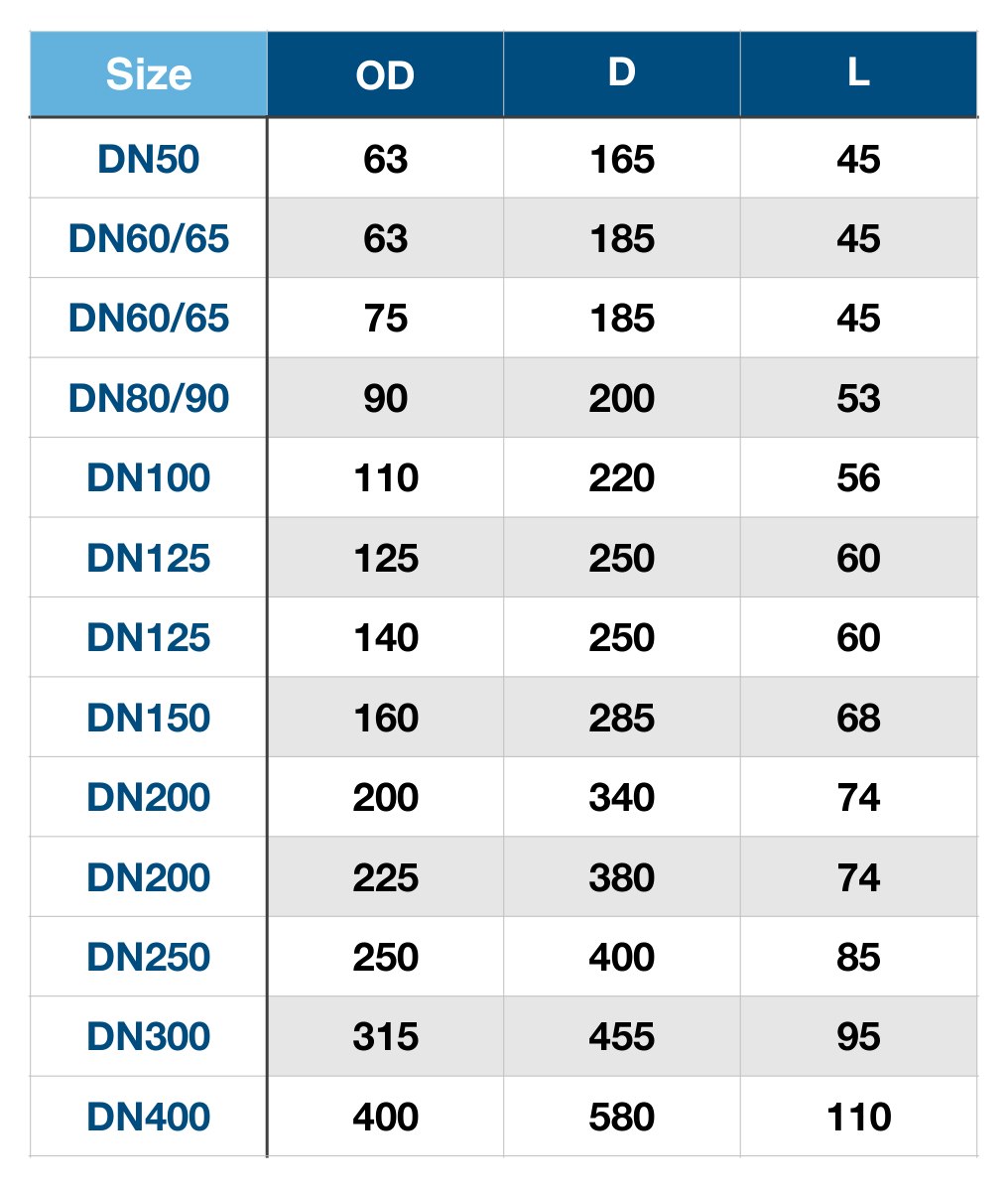

| DN50 | Lightweight | 63 | 165 | 45 |
| DN60/65 | Lightweight | 63 | 185 | 45 |
| DN60/65 | Lightweight | 75 | 185 | 45 |
| DN80/90 | Lightweight | 90 | 200 | 53 |
| DN100 | Lightweight | 110 | 220 | 56 |
| DN125 | Lightweight | 125 | 250 | 60 |
| DN125 | Lightweight | 140 | 250 | 60 |
| DN150 | Lightweight | 160 | 285 | 68 |
| DN200 | Lightweight | 200 | 340 | 74 |
| DN200 | Lightweight | 225 | 380 | 74 |
| DN250 | Lightweight | 250 | 400 | 85 |
| DN300 | Lightweight | 315 | 455 | 95 |
| DN400 | Lightweight | 400 | 580 | 110 |
Lightweight documents
Lightweight generation with reduced product weight. PE uses a brass grip; PVC does not. Match the pipe OD and mating flange to this generation’s drawing.
Standard documents
Original design generation. PE configuration includes a brass grip. PVC configuration does not include the brass grip. Use this generation’s catalogue drawing and dimensions; confirm the required size and configuration.
Technical Downloads
Product FAQs
Are Standard and Lightweight separate product families?
They are two generations of the same Quick Adaptor for PE/PVC Pipes family.
What is the confirmed difference?
The Lightweight Series has reduced product weight compared with the Standard Series.
How do I request the correct product documents?
Specify Standard Series or Lightweight Series, pipe material, actual pipe outside diameter and the required grip configuration. Request documents and a quotation for that exact generation and pipe configuration.
Product selection
Specify Standard Series or Lightweight Series, pipe material, actual pipe outside diameter, the required grip configuration, connection details, working pressure and medium, quantity and destination. Request the matching drawing and product sheet for that exact configuration.
