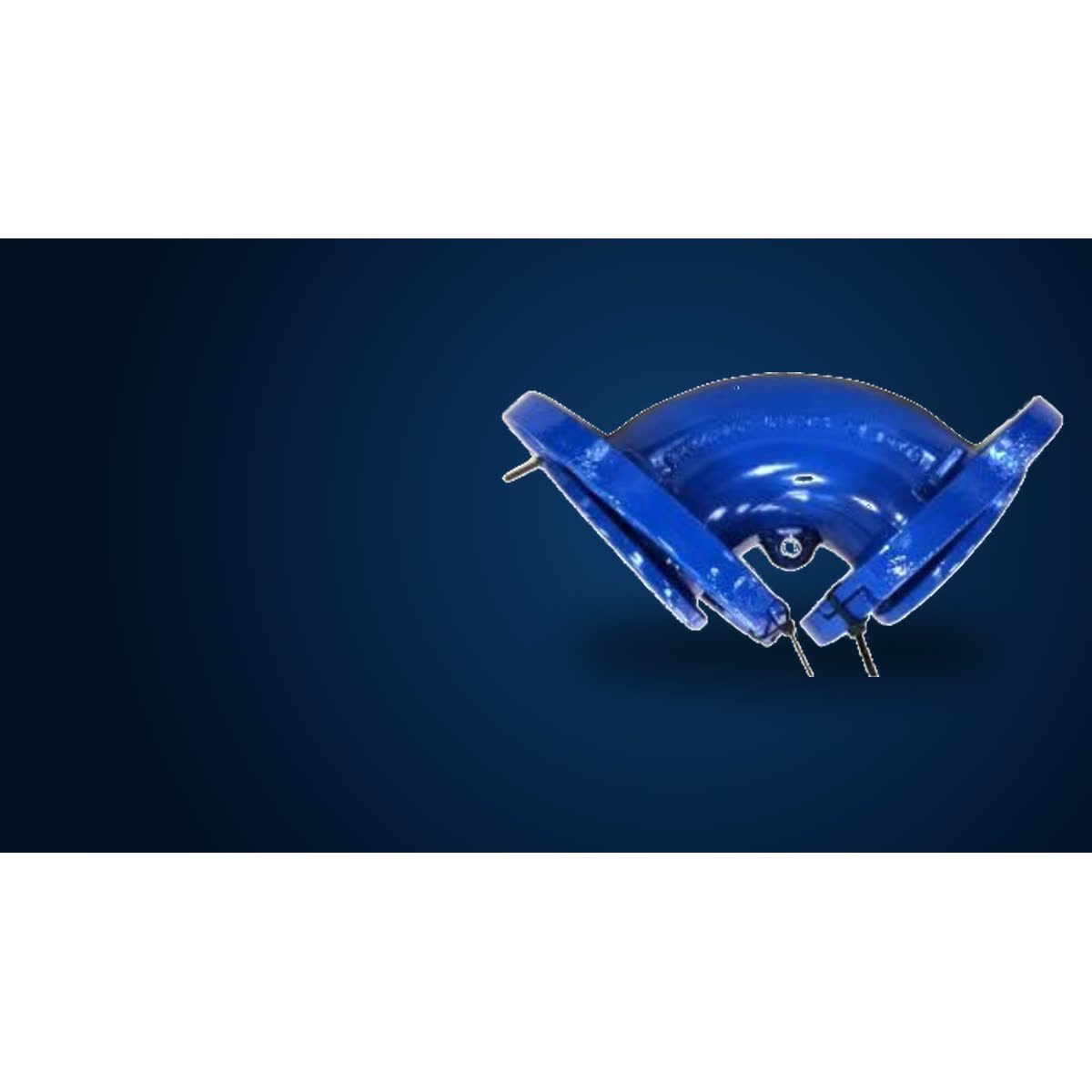

Loose-Flanged 90° Bend
Loose-Flanged 90° Bend for 90-degree direction-change enquiries. Send the required sizes, working pressure, connection details and project drawing for review.
Panoramica del prodotto
Loose-Flanged 90° Bend is supported by owned loose-flange catalogue page image loose-05.png. The source shows 90-degree bend DN and L rows, PN10/16 notation, EN545 pattern references and section drawing. The owned page also records ductile iron GGG-50 body, EPDM/NBR/SBR gasket options, epoxy coating and EN545 pattern references. Treat the catalogue as historical selection evidence: confirm current size availability, pressure applicability, material, coating, flange drilling or socket details, dimensions, mass and project suitability with Aquafitting before quotation.
2016 Tour Dates | Location | Tickets |
|---|
Riferimenti tecnici
Source: owned loose-flange catalogue page image loose-05.png. Historical catalogue rows support selection only. Current offerability, exact size combination, pressure, material, gasket, coating, drilling/connection dimensions, mass, standard applicability and project suitability require Aquafitting confirmation.
Applicazione
Use this page for 90-degree direction-change enquiries. Confirm the mating pipe/flange or socket arrangement, required dimensions, working pressure and project conditions before selection.
Selezione del prodotto
product name; required DN/OD and any main/branch or inlet/outlet size; working pressure or pressure class; flange drilling or socket/pipe details; material/coating requirement; quantity; destination; required documents; project drawing if available
Domande frequenti sul prodotto
What should I send for a Loose-Flanged 90° Bend enquiry?
Send the required DN/OD and any main/branch or inlet/outlet size, working pressure, flange drilling or socket/pipe details, quantity, destination and any project drawing or document requirement.
What technical evidence is available for Loose-Flanged 90° Bend?
Aquafitting-owned evidence is recorded as owned loose-flange catalogue page image loose-05.png, showing 90-degree bend DN and L rows, PN10/16 notation, EN545 pattern references and section drawing. It is historical selection evidence and must be checked against the current enquiry before quotation.
Which details still require Aquafitting confirmation?
Confirm current size availability, working pressure, material, gasket, coating, flange drilling or socket/pipe interface, dimensions, mass, standard applicability, documents and project suitability before quotation.
