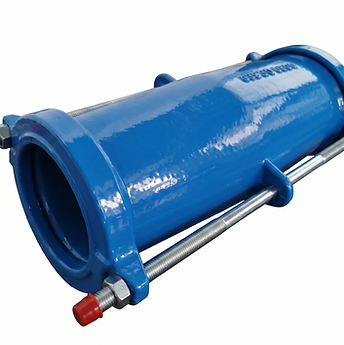

Long-Body Gibault Joint for PVC Pipes — 300 mm
Join PVC pipe ends with the 300 mm long-body Gibault design. Select by actual pipe outside diameter and the matching assembly drawing.
Pipe compatibility
PVC pipe. Confirm the exact OD and assembly configuration.
Product overview
Join PVC pipe ends with the 300 mm long-body Gibault design.
Pipe compatibility
PVC pipe. Confirm the exact OD and assembly configuration.
Connection arrangement
PVC pipe end → long-body Gibault Joint → PVC pipe end
Connection and selection
Dedicated design
The 300 mm long-body design has its own size schedule and installation length.
Pipe fit
Measure the pipe outside diameter and select the corresponding product row.
Installation
Confirm the seal, service conditions and required installation arrangement for the selected size.
Catalogue dimensions
Source: AQUAFITTING English catalogue 2023, page 26. Dimension symbols follow the corresponding source drawing. Confirm the selected configuration and current dimensions before ordering.
| Pipe OD designation | D | A | B | Bolts M | Bolts Qty |
|---|---|---|---|---|---|
| OD50 | 50 | 128 | 300 | M12*400 | 2 |
| OD63 | 63 | 142 | 300 | M12*400 | 2 |
| OD75 | 75 | 157 | 300 | M12*400 | 2 |
| OD90 | 90 | 173 | 300 | M12*400 | 2 |
| OD110 | 110 | 197 | 300 | M12*400 | 3 |
| OD125 | 125 | 211 | 300 | M12*400 | 3 |
| OD140 | 140 | 228 | 300 | M12*400 | 4 |
| OD160 | 160 | 249 | 300 | M12*400 | 4 |
| OD200 | 200 | 292 | 300 | M12*400 | 4 |
| OD225 | 225 | 323 | 300 | M12*400 | 4 |
| OD250 | 250 | 348 | 300 | M12*400 | 6 |
| OD315 | 315 | 419 | 300 | M12*400 | 6 |
Technical evidence
Review the product identity and available resources, then send the required size or measured outside diameter, pipe material, connection details, operating conditions, quantity, destination and supporting files.
Technical Downloads
Product selection
product name; DN or nominal size; actual pipe outside diameter; pipe material; end condition; working pressure; quantity; destination; required drawing or catalogue
