ULTRA Wide-Range Flange Adaptor
Connect a plain-ended pipe to a flanged component. A restrained pipe-side connection to a flanged component. The ULTRA flange adaptor combines a pipe-side sealing and gripping assembly with a flange interface. It supports applications requiring axial restraint, including appropriate PE configurations. Match the pipe requirements and the mating flange separately.
Pipe compatibility
Confirm the pipe material for the selected pipe-side configuration.
Product overview
Connect a plain-ended pipe to a flanged component.
Pipe compatibility
Confirm the pipe material for the selected pipe-side configuration.
Connection arrangement
Plain pipe end → flanged valve or fitting. Check flange DN and drilling separately from pipe OD.
Two interfaces. Different selection rules.
Pipe-side assembly
The gripping components act at the pipe-side connection. Select the configuration against the pipe material and measured outside diameter.
Flange interface
The flange provides the bolted interface to a valve or fitting. Check the mating flange DN and drilling separately.
Size selection
Match the measured pipe OD to the listed DE interval, then confirm the pipe material and service conditions.
Dimensions

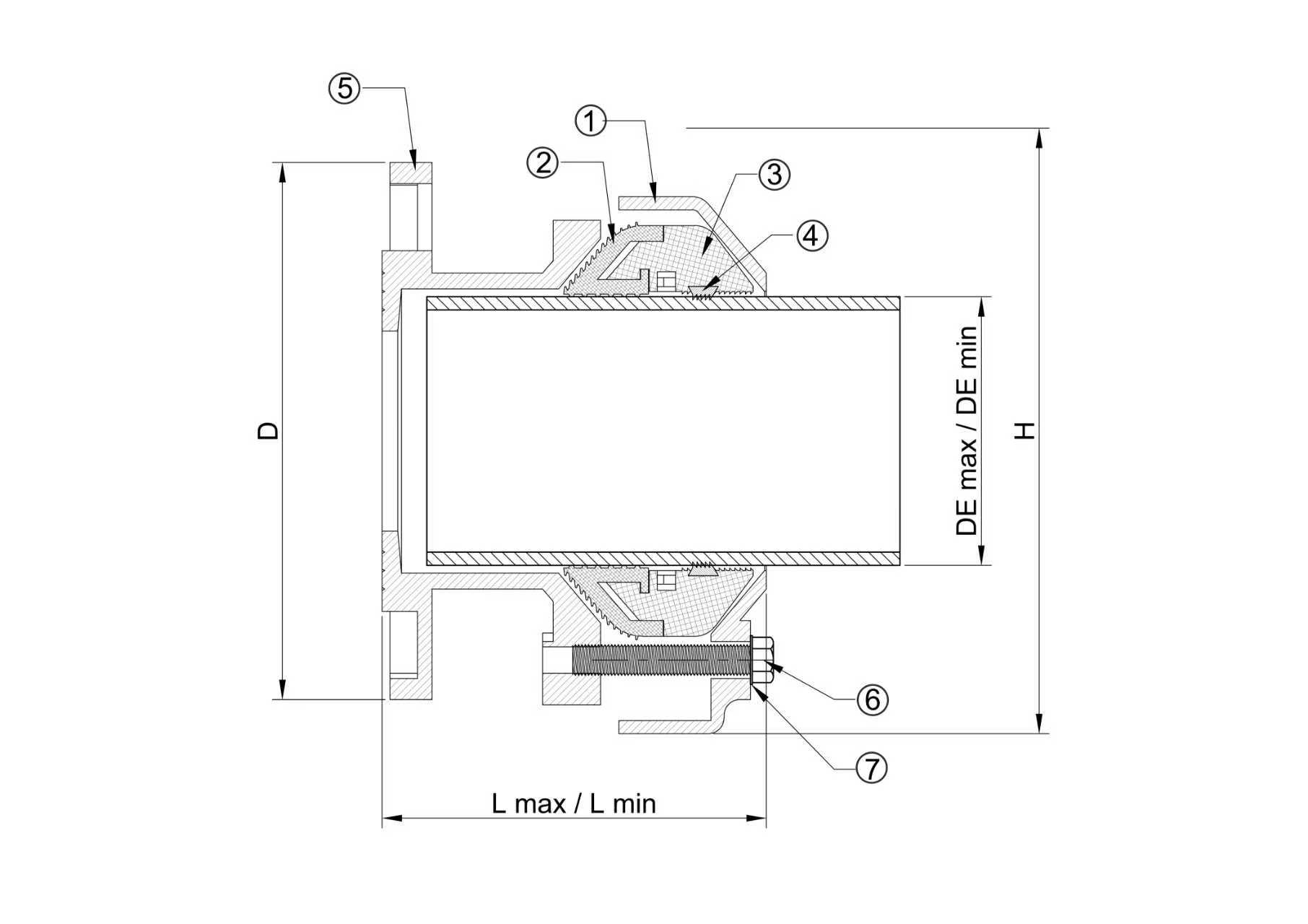

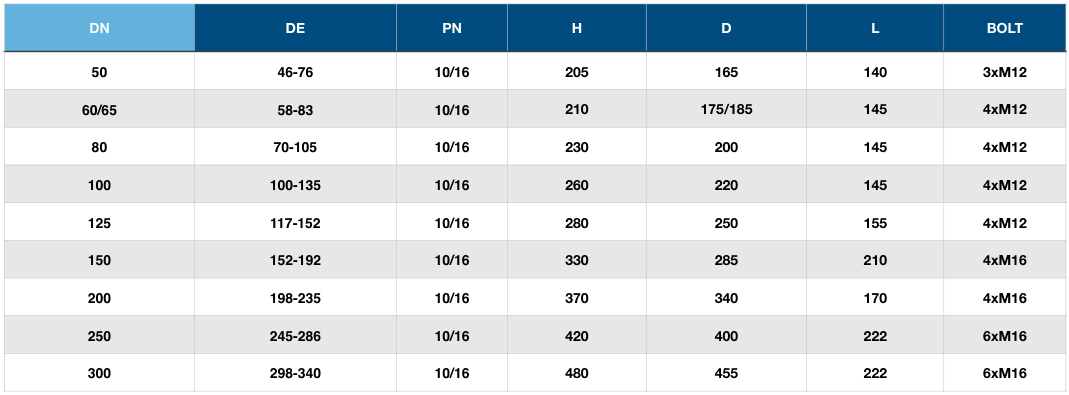

| DN | DE (mm) | PN | H (mm) | D (mm) | BOLT | Enquire |
|---|---|---|---|---|---|---|
| 50 | 46-76 | 10/16 | 205 | 165 | 3xM12 | Enquire → |
| 60/65 | 58-83 | 10/16 | 210 | 175/185 | 4xM12 | Enquire → |
| 80 | 70-105 | 10/16 | 230 | 200 | 4xM12 | Enquire → |
| 100 | 100-135 | 10/16 | 260 | 220 | 4xM12 | Enquire → |
| 125 | 117-152 | 10/16 | 280 | 250 | 4xM12 | Enquire → |
| 150 | 152-192 | 10/16 | 330 | 285 | 4xM16 | Enquire → |
| 200 | 198-235 | 10/16 | 370 | 340 | 4xM16 | Enquire → |
| 250 | 245-286 | 10/16 | 420 | 400 | 6xM16 | Enquire → |
| 300 | 298-340 | 10/16 | 480 | 455 | 6xM16 | Enquire → |
Technical Downloads
Product FAQs
Which dimensions should I send?
Send measured pipe outside diameter, pipe material, flange DN and drilling, and the mating flange details.
How can I obtain the right technical documents?
Include the product name, measured pipe dimensions and connection details in your enquiry. Request the drawing and installation information for the selected configuration.
What additional information is needed for PE or PVC?
Include pipe SDR or wall thickness and the required support-insert arrangement with the enquiry. Confirm these details for the selected configuration before ordering.
Product selection
Product; measured pipe OD and material; flange DN and drilling; mating flange details; pressure; medium; restraint requirement; PE/PVC SDR or wall thickness and insert requirement; quantity; destination; required date; drawing revision
