Ductile Iron Socket Spigot for PVC Pipes

Connect a PVC pipe end to a compatible socket through a socket-spigot fitting. Match the mating interfaces to the confirmed discrete size or size pair.

Pipe compatibility
PVC pipe at the socket connection. Match the actual pipe outside diameter, socket geometry and gasket configuration.

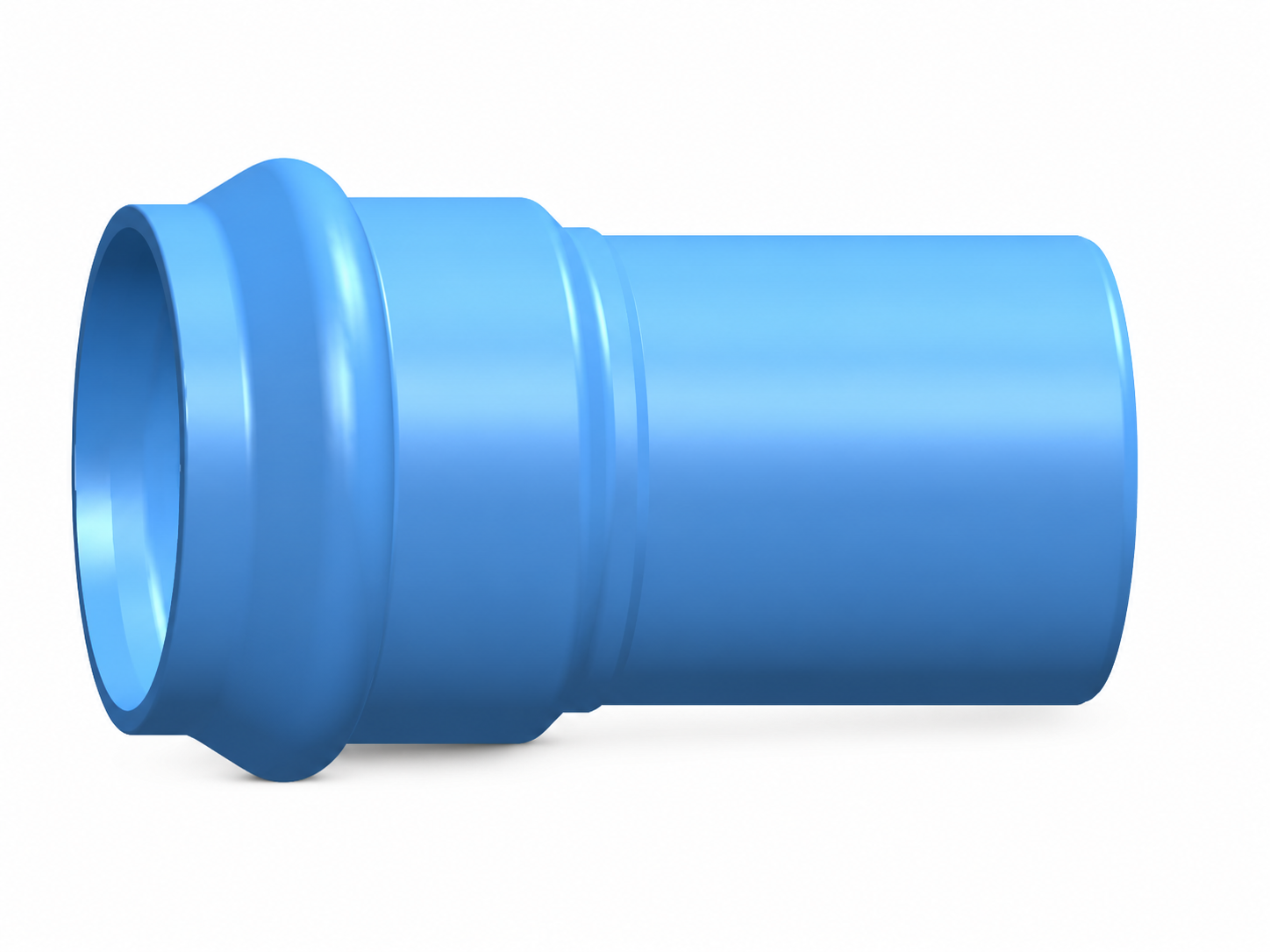

Aquafitting Socket Spigot product view.

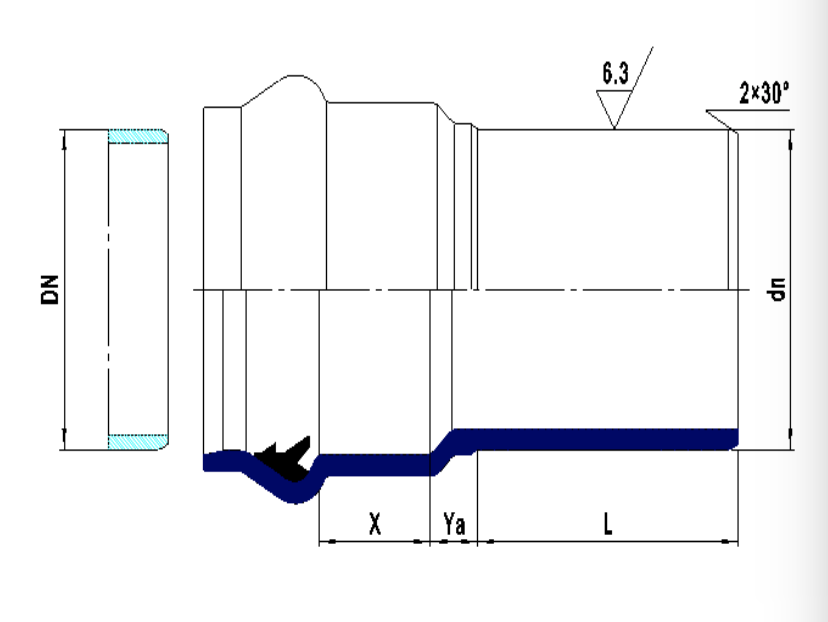

Owned technical drawing for Aqua Fitting Socket SpigotView original illustration
Request a QuoteProduct summary · PDF · English · V2026.08 · 91 KB

Product overview

Connect a PVC pipe end to a compatible socket through a socket-spigot fitting.

Pipe compatibility

PVC pipe at the socket connection. Match the actual pipe outside diameter, socket geometry and gasket configuration.

Connection arrangement

PVC pipe end → socket-spigot → compatible socket

Confirmed size references

The formal SKU master confirms OD40, OD50, OD63, OD75, OD90, OD110, OD125, OD140, OD160, OD180, OD200, OD225, OD250, OD280 and OD315, with P16 recorded for these SKUs.

Request a Quote

Connection and selection

Socket and spigot

Check both mating interfaces and the confirmed discrete pipe OD.

Socket fit

Match the pipe outside diameter to the selected socket configuration. Nominal size and measured pipe outside diameter are separate checks.

Assembly selection

Use the product-specific drawing and size row. Specify the gasket, service conditions and required quantity.

Request a Quote

Catalogue dimensions

Source: AQUAFITTING PVC fitting 2022, page 9. Dimension symbols follow the corresponding source drawing. Confirm the selected configuration and current dimensions before ordering. Select using this product’s socket/spigot and flange arrangement.

Ductile Iron Socket Spigot for PVC Pipes — Catalogue dimensions
DNdnXYaLTotal length
4040+0.2381585170
5050+0.4401590180
6363+0.4421595190
7575+0.54217100200
9090+0.64417105212
110110+0.74718110224
125125+0.84919115234
140140+0.85120120245
160160+15421130263
180180+0.95721135273
200200+16022140284
225225+1.16423150303
250250+1.26823160321
280280+1.47224170340
315315+1.57826180364

Technical evidence

Review the product identity and available resources, then send the required size or measured outside diameter, pipe material, connection details, operating conditions, quantity, destination and supporting files.

Technical Downloads

Product summary · PDF · English · V2026.08 · 91 KB

Catalogues & Downloads

Open technical drawing at full size

Product selection

product name; pipe size or outside diameter; pressure; quantity; destination; required drawing or catalogue

Request a Quote

Ductile Iron Socket Spigot for PVC Pipes

Aquafitting Socket Spigot product view.

Connect a PVC pipe end to a compatible socket through a socket-spigot fitting. Match the mating interfaces to the confirmed discrete size or size pair.

Pipe compatibility
PVC pipe at the socket connection. Match the actual pipe outside diameter, socket geometry and gasket configuration.

Product summary · PDF · English · V2026.08 · 91 KB

Request a Quote

Overview · Specifications · Downloads

Overview

Catalogue dimensions

DN
dn
X
Ya
L
Total length
40
40+0.2
38
15
85
170
50
50+0.4
40
15
90
180
63
63+0.4
42
15
95
190
75
75+0.5
42
17
100
200
90
90+0.6
44
17
105
212
110
110+0.7
47
18
110
224
125
125+0.8
49
19
115
234
140
140+0.8
51
20
120
245
160
160+1
54
21
130
263
180
180+0.9
57
21
135
273
200
200+1
60
22
140
284
225
225+1.1
64
23
150
303
250
250+1.2
68
23
160
321
280
280+1.4
72
24
170
340
315
315+1.5
78
26
180
364

Source: AQUAFITTING PVC fitting 2022, page 9. Dimension symbols follow the corresponding source drawing. Confirm the selected configuration and current dimensions before ordering. Select using this product’s socket/spigot and flange arrangement.

40

dn: 40+0.2 · X: 38 · Ya: 15 · L: 85 · Total length: 170

50

dn: 50+0.4 · X: 40 · Ya: 15 · L: 90 · Total length: 180

63

dn: 63+0.4 · X: 42 · Ya: 15 · L: 95 · Total length: 190

75

dn: 75+0.5 · X: 42 · Ya: 17 · L: 100 · Total length: 200

90

dn: 90+0.6 · X: 44 · Ya: 17 · L: 105 · Total length: 212

110

dn: 110+0.7 · X: 47 · Ya: 18 · L: 110 · Total length: 224

125

dn: 125+0.8 · X: 49 · Ya: 19 · L: 115 · Total length: 234

140

dn: 140+0.8 · X: 51 · Ya: 20 · L: 120 · Total length: 245

160

dn: 160+1 · X: 54 · Ya: 21 · L: 130 · Total length: 263

180

dn: 180+0.9 · X: 57 · Ya: 21 · L: 135 · Total length: 273

200

dn: 200+1 · X: 60 · Ya: 22 · L: 140 · Total length: 284

225

dn: 225+1.1 · X: 64 · Ya: 23 · L: 150 · Total length: 303

250

dn: 250+1.2 · X: 68 · Ya: 23 · L: 160 · Total length: 321

280

dn: 280+1.4 · X: 72 · Ya: 24 · L: 170 · Total length: 340

315

dn: 315+1.5 · X: 78 · Ya: 26 · L: 180 · Total length: 364

Product overview

Connect a PVC pipe end to a compatible socket through a socket-spigot fitting.

Pipe compatibility

PVC pipe at the socket connection. Match the actual pipe outside diameter, socket geometry and gasket configuration.

Connection arrangement

PVC pipe end → socket-spigot → compatible socket

Confirmed size references

The formal SKU master confirms OD40, OD50, OD63, OD75, OD90, OD110, OD125, OD140, OD160, OD180, OD200, OD225, OD250, OD280 and OD315, with P16 recorded for these SKUs.

Request a Quote

Technical evidence

Review the product identity and available resources, then send the required size or measured outside diameter, pipe material, connection details, operating conditions, quantity, destination and supporting files.

Owned technical drawing for Aqua Fitting Socket Spigot

Connection and selection

Socket and spigot

Check both mating interfaces and the confirmed discrete pipe OD.

Socket fit

Match the pipe outside diameter to the selected socket configuration. Nominal size and measured pipe outside diameter are separate checks.

Assembly selection

Use the product-specific drawing and size row. Specify the gasket, service conditions and required quantity.

Request a Quote

Product selection

product name; pipe size or outside diameter; pressure; quantity; destination; required drawing or catalogue

Request a Quote
