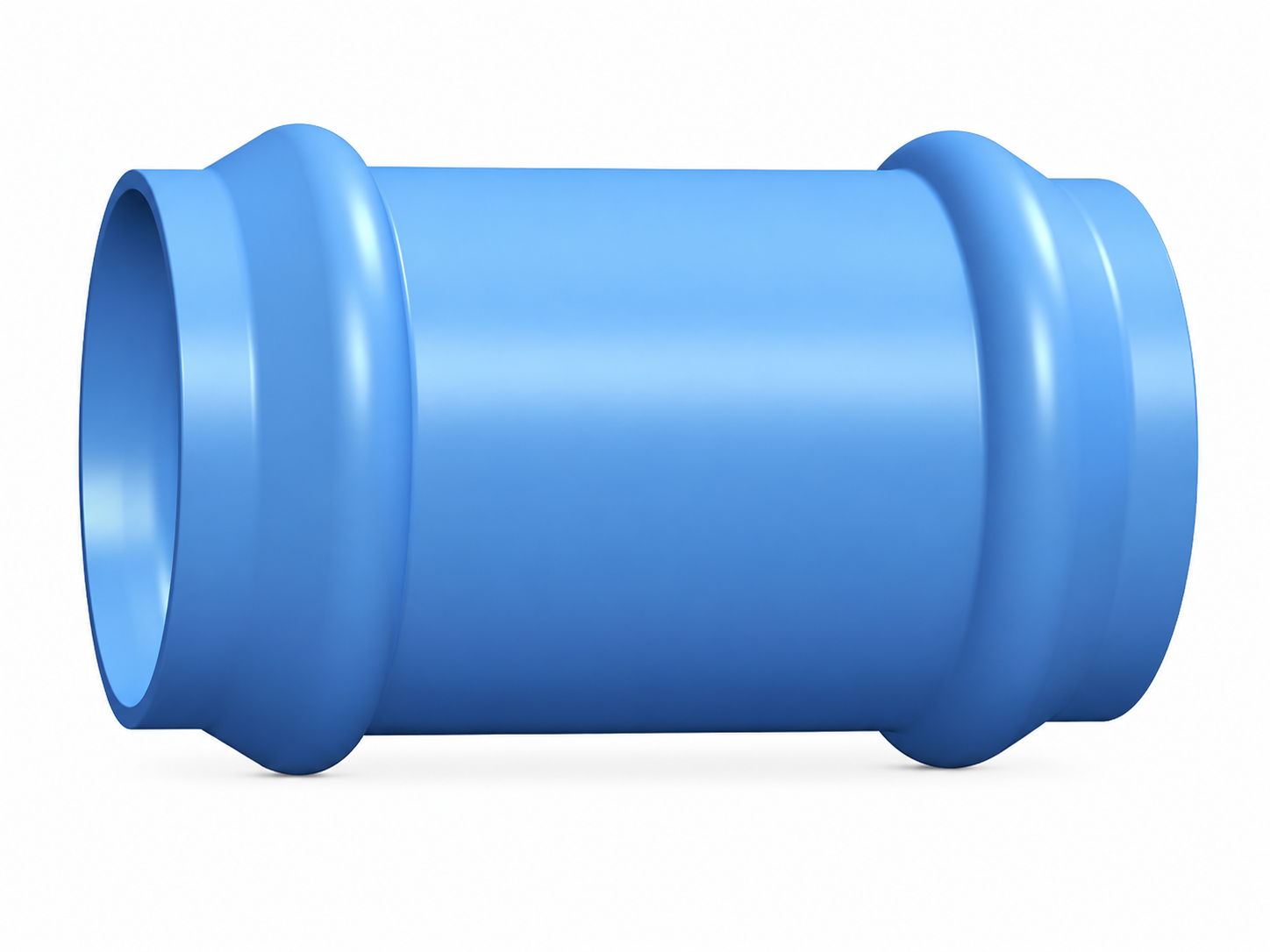

Ductile Iron Double Socket Collar for PVC Pipes
Join two PVC pipe ends with a double-socket collar. Match the mating interfaces to the confirmed discrete size or size pair.
Pipe compatibility
PVC pipe at the socket connection. Match the actual pipe outside diameter, socket geometry and gasket configuration.
Product overview
Join two PVC pipe ends with a double-socket collar.
Pipe compatibility
PVC pipe at the socket connection. Match the actual pipe outside diameter, socket geometry and gasket configuration.
Connection arrangement
PVC pipe end → collar → PVC pipe end
Confirmed size references
The formal SKU master confirms OD63, OD75, OD90, OD110, OD160, OD200, OD225, OD315 and OD630, with P16 recorded for these SKUs.
Connection and selection
Two sockets
Match the outside diameter at both ends to the confirmed collar size.
Socket fit
Match the pipe outside diameter to the selected socket configuration. Nominal size and measured pipe outside diameter are separate checks.
Assembly selection
Use the product-specific drawing and size row. Specify the gasket, service conditions and required quantity.
Catalogue dimensions

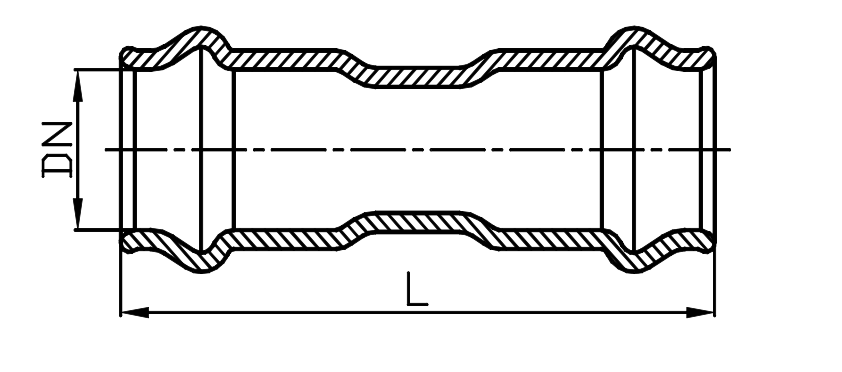

Source: AQUAFITTING PVC fitting 2022, page 7. — means the dimension is not stated in the catalogue; request it for the selected size. DN follows the source drawing.
Technical evidence
Review the product identity and available resources, then send the required size or measured outside diameter, pipe material, connection details, operating conditions, quantity, destination and supporting files.
Technical Downloads
Product selection
product name; pipe size or outside diameter; pressure; quantity; destination; required drawing or catalogue
