Split Repair Coupling for PE/PVC Pipes
Provide a split-body connection for compatible PE or PVC pipe ends. Select the split repair coupling against the pipe OD and intended repair or connection arrangement.
Pipe compatibility
PE or PVC pipe in the selected assembly. Confirm wall dimensions and support-liner requirements.
Product overview
Provide a split-body connection for compatible PE or PVC pipe ends.
Pipe compatibility
PE or PVC pipe in the selected assembly. Confirm wall dimensions and support-liner requirements.
Connection arrangement
Pipe ends → split-body repair coupling
Connection and selection
Split-body arrangement

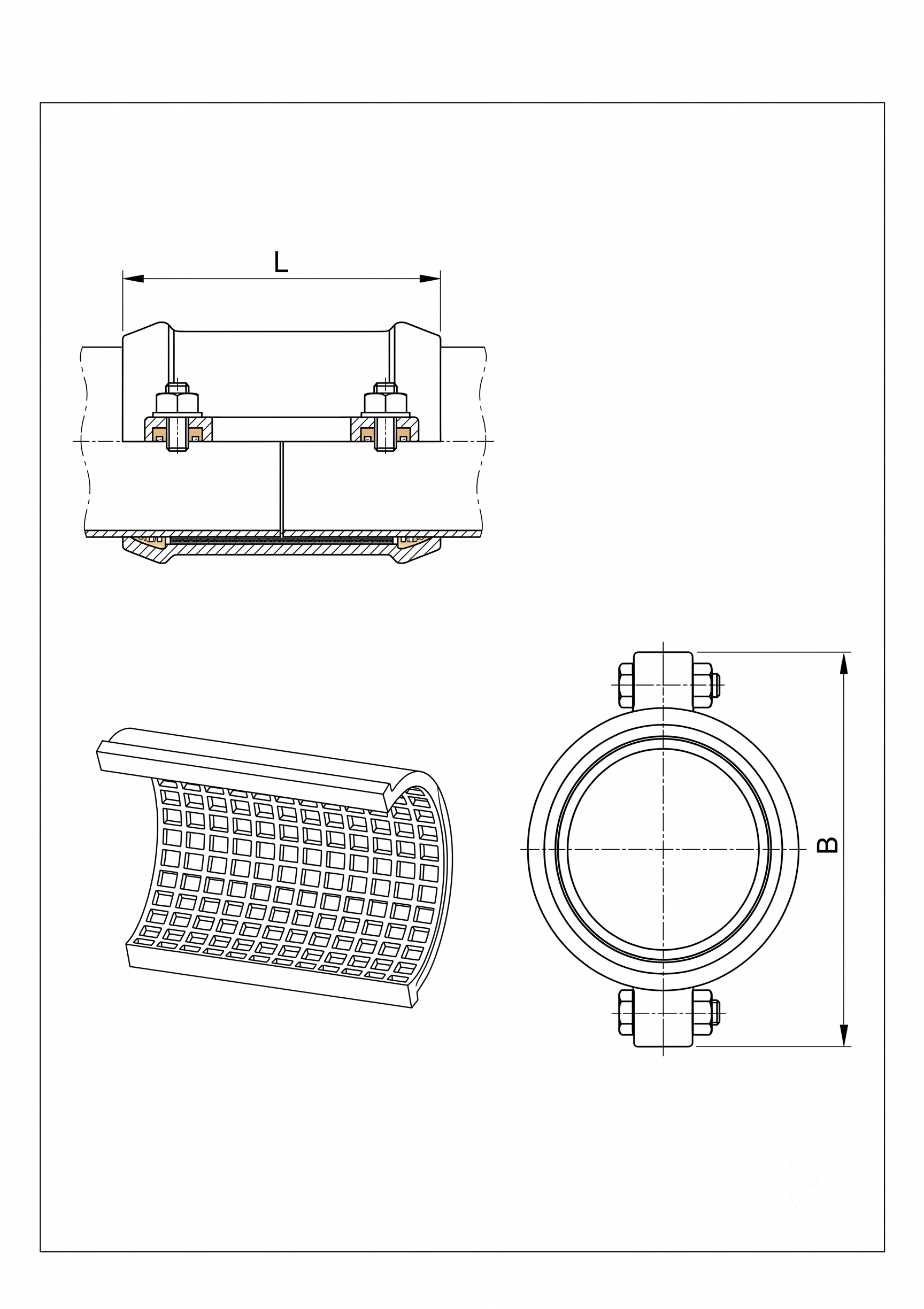

Check the product drawing for assembly around the pipe and the required repair coverage.
Pipe dimensions
Select by the measured pipe outside diameter, not DN alone. The table contains separate OD125 and OD140 rows for DN125, and OD200 and OD225 rows for DN200. For a pipe-to-pipe connection, provide the material and measured OD of both ends.
Pipe support
Confirm the installation and support-liner requirements for the selected PE or PVC configuration.

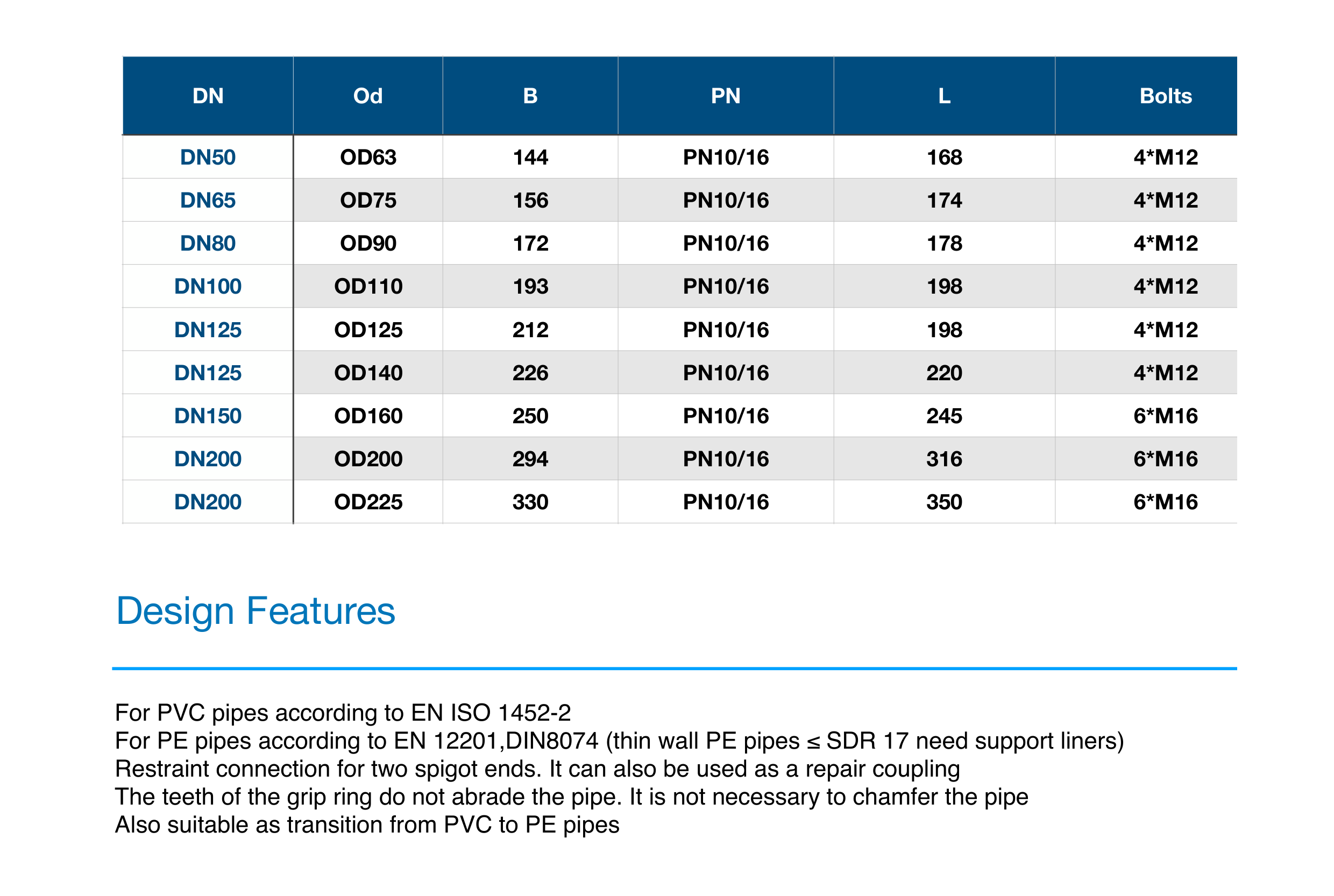

Catalogue dimensions
Source: AQUAFITTING English catalogue 2023, page 30. Dimension symbols follow the corresponding source drawing. Confirm the selected configuration and current dimensions before ordering.
Technical evidence
Review the product identity and available resources, then send the required size or measured outside diameter, pipe material, connection details, operating conditions, quantity, destination and supporting files.
Technical Downloads
Product selection
product name; pipe outside diameter; pipe material; repair or damage condition; repair length if applicable; working pressure; quantity; destination
