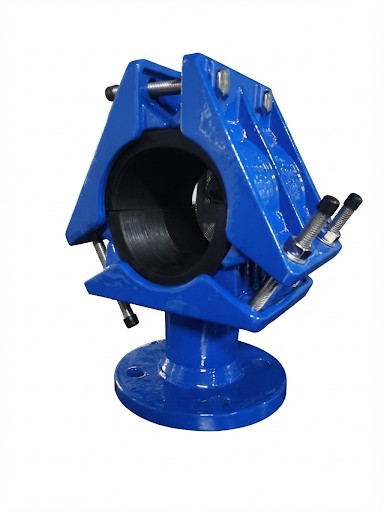

Three-Piece Repair Collar with Flanged Outlet
Repair a pipe using a three-piece collar with a flanged outlet. Select the collar against the measured pipe OD and required assembly length.
Pipe compatibility
Pipe-material compatibility must be confirmed for the selected configuration. Supply the actual pipe material and measured outside diameter.
Product overview
Repair a pipe using a three-piece collar with a flanged outlet.
Pipe compatibility
Pipe-material compatibility must be confirmed for the selected configuration. Supply the actual pipe material and measured outside diameter.
Connection arrangement
Pipe repair location → three-piece collar → flanged outlet
Connection and selection
Three-piece assembly

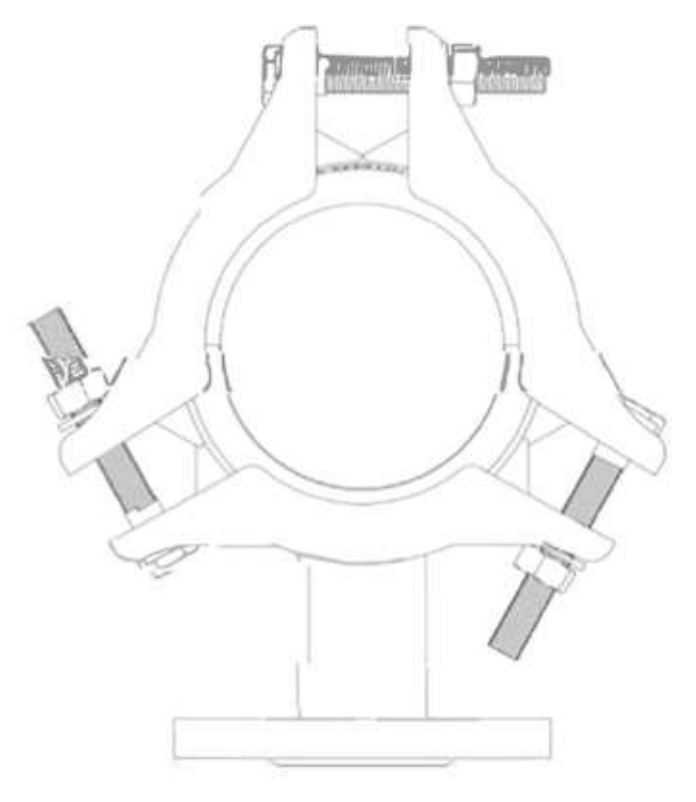

Use the dedicated drawing to check assembly around the pipe and the required repair coverage.
Pipe dimensions
Provide the pipe material, outside diameter and condition at the repair location.
Flanged outlet
Specify the required outlet flange DN separately from the main-pipe DN and measured OD. The sizes listed after the slash are catalogue outlet options, not one combined outlet size. Confirm the selected outlet and mating flange drilling before ordering.

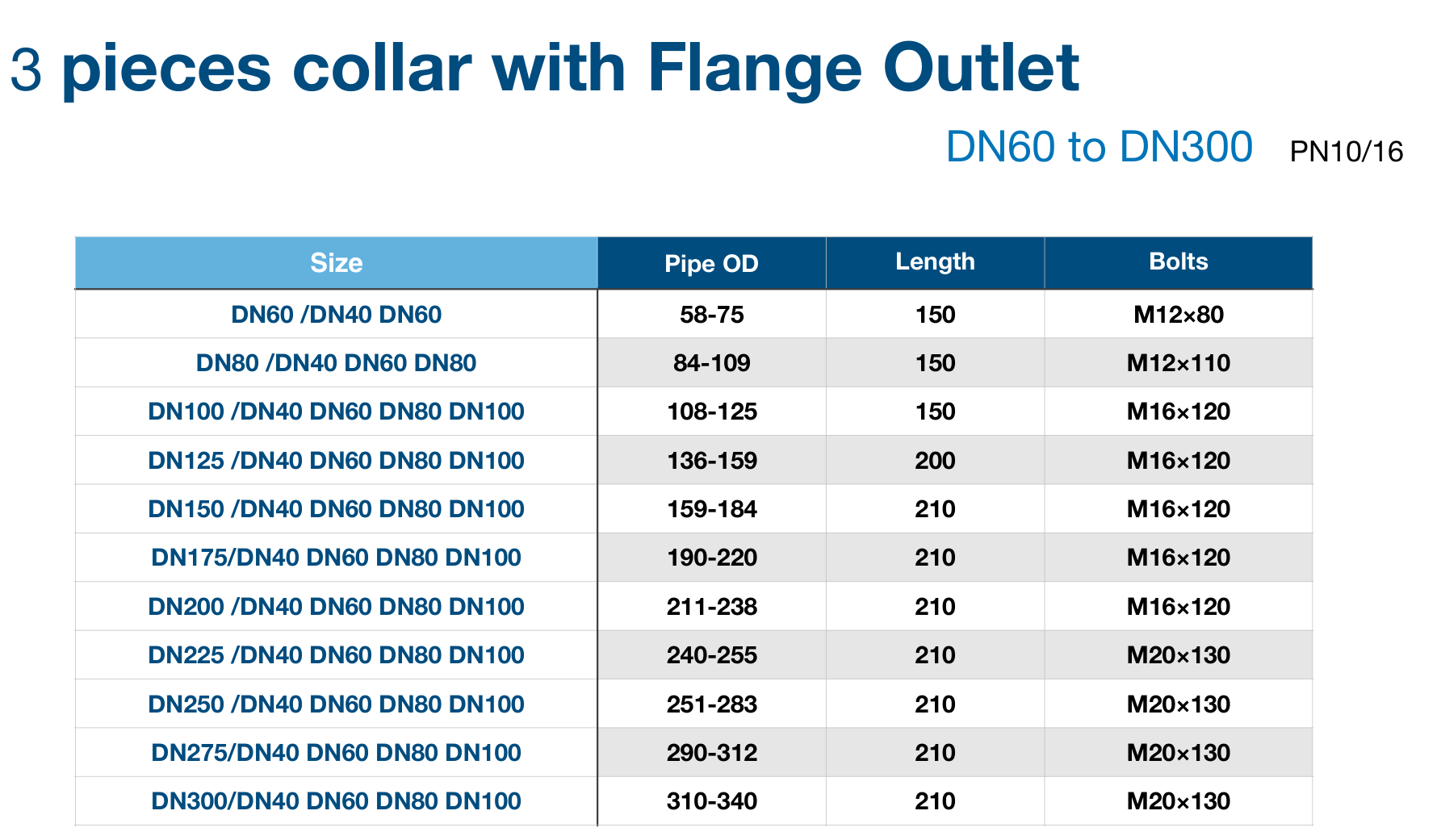

Catalogue dimensions
Source: AQUAFITTING 2023 English catalogue, page 22, flanged-outlet collar table. Size combinations and dimension labels follow the original table. Confirm pipe outside diameter and outlet configuration before ordering.
| Main DN / outlet DN options | Pipe OD | Length | Bolts |
|---|---|---|---|
| DN60 / DN40 DN60 | 58-75 | 150 | M12×80 |
| DN80 / DN40 DN60 DN80 | 84-109 | 150 | M12×110 |
| DN100 / DN40 DN60 DN80 DN100 | 108-125 | 150 | M16×120 |
| DN125 / DN40 DN60 DN80 DN100 | 136-159 | 200 | M16×120 |
| DN150 / DN40 DN60 DN80 DN100 | 159-184 | 210 | M16×120 |
| DN175 / DN40 DN60 DN80 DN100 | 190-220 | 210 | M16×120 |
| DN200 / DN40 DN60 DN80 DN100 | 211-238 | 210 | M16×120 |
| DN225 / DN40 DN60 DN80 DN100 | 240-255 | 210 | M20×130 |
| DN250 / DN40 DN60 DN80 DN100 | 251-283 | 210 | M20×130 |
| DN275 / DN40 DN60 DN80 DN100 | 290-312 | 210 | M20×130 |
| DN300 / DN40 DN60 DN80 DN100 | 310-340 | 210 | M20×130 |
Technical evidence
Review the product identity and available resources, then send the required size or measured outside diameter, pipe material, connection details, operating conditions, quantity, destination and supporting files.
Technical Downloads
3 pieces collar with flange outlet
3 pieces collar with flange outletProduct selection
product name; pipe outside diameter; pipe material; repair or damage condition; repair length if applicable; working pressure; quantity; destination
