Long-Sleeve Universal Flange Adaptor
Connect a plain-ended pipe to a flange using the long-sleeve design. Select the exact product row and assembly drawing.
Pipe compatibility
Pipe-material compatibility must be confirmed for the selected configuration. Supply the actual pipe material and measured outside diameter.
Product overview
Connect a plain-ended pipe to a flange using the long-sleeve design.
Pipe compatibility
Pipe-material compatibility must be confirmed for the selected configuration. Supply the actual pipe material and measured outside diameter.
Connection arrangement
Plain pipe end → long sleeve → flange
Connection and selection
Sleeve length
Use the long-sleeve drawing and installation dimensions. Sleeve length alone does not establish a dynamic expansion-joint function.
Pipe material
Provide the pipe material and measured OD. A range or family name does not establish universal pipe compatibility.
Assembly selection
Confirm the seal, service conditions and required installation dimensions for the selected size.

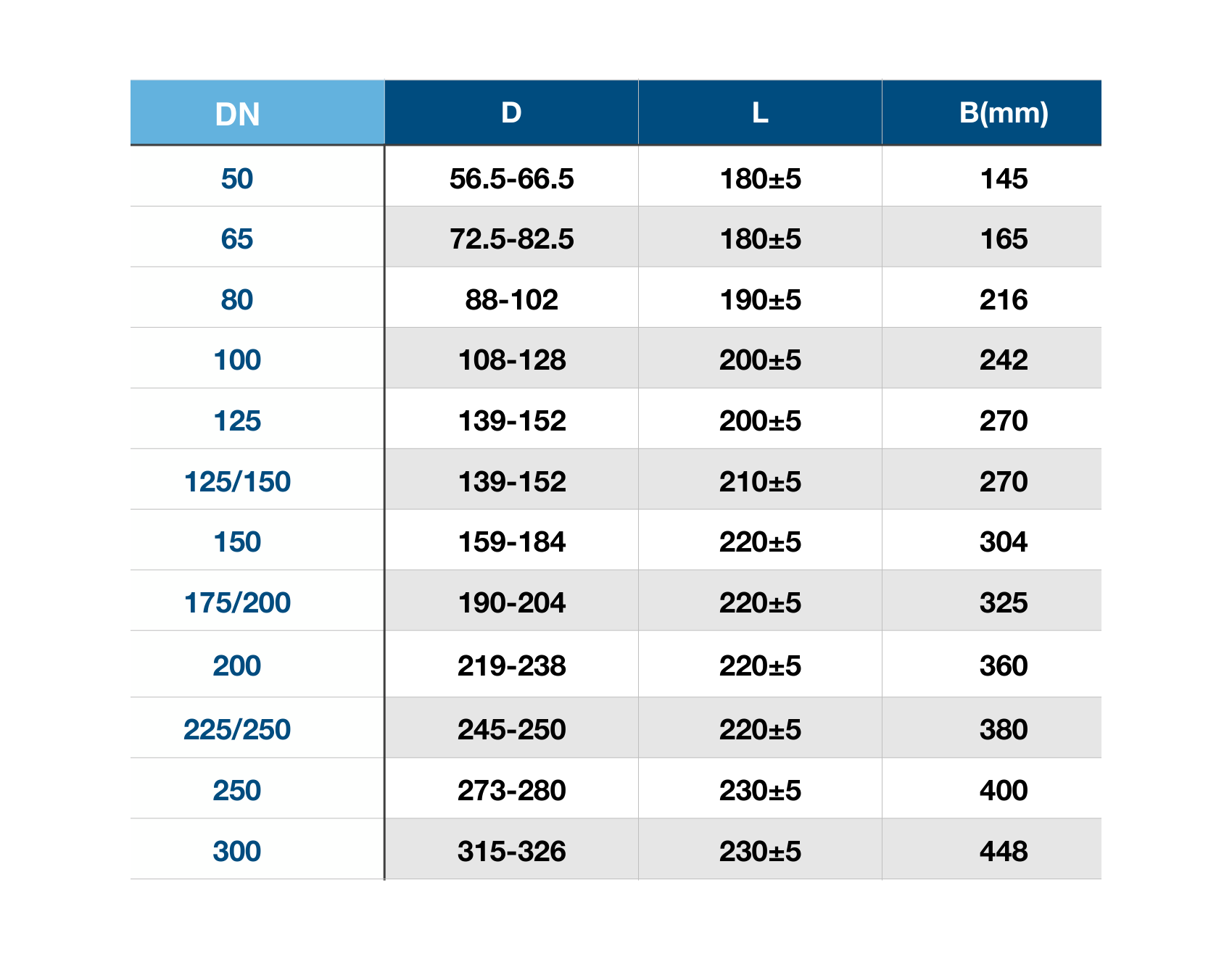

Catalogue dimensions

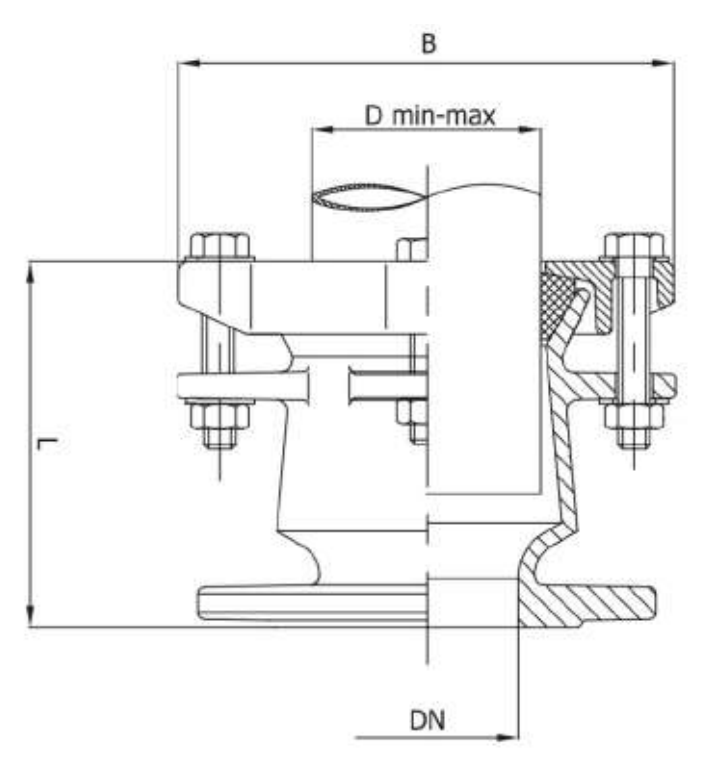

Source: AQUAFITTING English catalogue 2023, page 27. Dimension symbols follow the corresponding source drawing. Confirm the selected configuration and current dimensions before ordering.
| DN | D min–max | L | B (mm) |
|---|---|---|---|
| 50 | 56.5-66.5 | 180±5 | 145 |
| 65 | 72.5-82.5 | 180±5 | 165 |
| 80 | 88-102 | 190±5 | 216 |
| 100 | 108-128 | 200±5 | 242 |
| 125 | 139-152 | 200±5 | 270 |
| 125/150 | 139-152 | 210±5 | 270 |
| 150 | 159-184 | 220±5 | 304 |
| 175/200 | 190-204 | 220±5 | 325 |
| 200 | 219-238 | 220±5 | 360 |
| 225/250 | 245-250 | 220±5 | 380 |
| 250 | 273-280 | 230±5 | 400 |
| 300 | 315-326 | 230±5 | 448 |
Technical evidence
Review the product identity and available resources, then send the required size or measured outside diameter, pipe material, connection details, operating conditions, quantity, destination and supporting files.
Technical Downloads
Product selection
product name; DN or nominal size; actual pipe outside diameter; pipe material; end condition; working pressure; quantity; destination; required drawing or catalogue
