Universal Flange Adaptor
Universal flange adaptor (also called a universal flange adapter) — a wide tolerance flange adaptor — for connecting a plain-ended pipe to a flanged component. Catalogue options include DN100 for 107–128 mm pipe outside diameter. An economical conventional option; select the exact pipe OD range and mating flange requirements for your connection.
Plain pipe end → flange
Non-restrained connection. Not for PE pipes.
Request a QuoteTechnical data sheet · PDF ↗Product overview
Pipe compatibility
Pipe-material compatibility must be confirmed for the selected configuration. Supply the actual pipe material and measured outside diameter.
Consider MAXI where broader OD coverage is useful, or ULTRA where restraint is required from the connection.

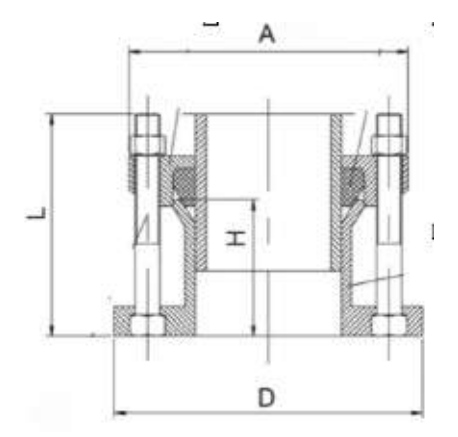

Structure details
Ductile iron GGG-50 body and end ring, with epoxy coating, as listed in the product catalogue.
The catalogue lists EPDM, NBR or SBR seals and carbon-steel, SS304 or SS316 fasteners. Specify the required configuration for your application.
Specifications

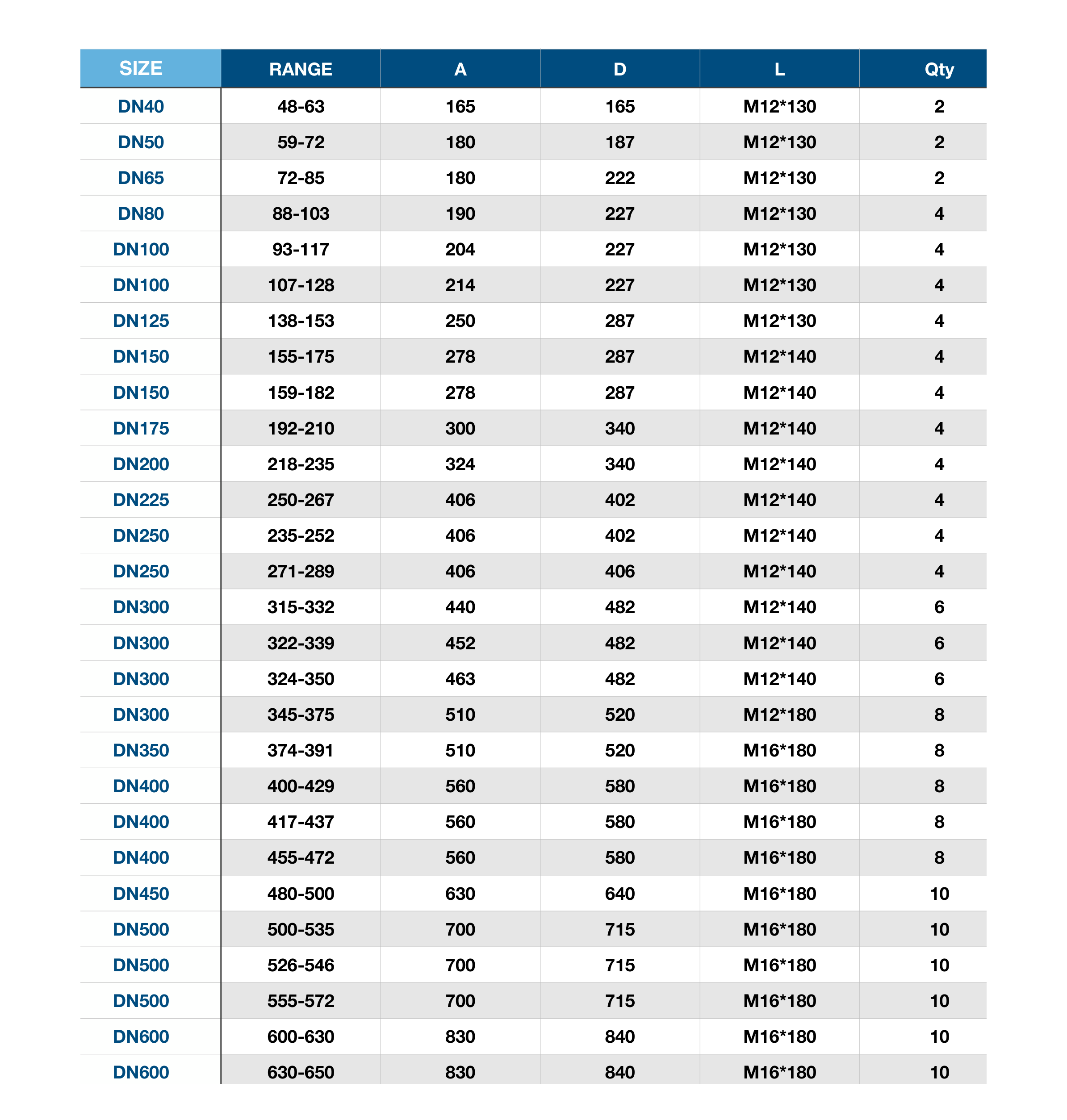

Select the pipe OD range and check the mating flange dimensions in the complete catalogue size table. For example, Universal Flange Adaptor DN100 with a pipe OD range of 107–128 mm is a separate listed option from DN100 93–117 mm. Select by measured pipe OD and check the mating flange. Select the DN link in a row to include that exact range in your enquiry.
DN versus pipe outside diameter: selection guide
| DN | Pipe OD (mm) |
|---|---|
| DN40 | 48-63 |
| DN50 | 59-72 |
| DN65 | 72-85 |
| DN80 | 88-103 |
| DN100 | 93-117 |
| DN100 | 107-128 |
| DN125 | 138-153 |
| DN150 | 155-175 |
| DN150 | 159-182 |
| DN175 | 192-210 |
| DN200 | 218-235 |
| DN225 | 250-267 |
| DN250 | 235-252 |
| DN250 | 271-289 |
| DN | Pipe OD (mm) |
|---|---|
| DN300 | 315-332 |
| DN300 | 322-339 |
| DN300 | 324-350 |
| DN300 | 345-375 |
| DN350 | 374-391 |
| DN400 | 400-429 |
| DN400 | 417-437 |
| DN400 | 455-472 |
| DN450 | 480-500 |
| DN500 | 500-535 |
| DN500 | 526-546 |
| DN500 | 555-572 |
| DN600 | 600-630 |
| DN600 | 630-650 |
Documents & reference
Universal Flange Adaptor
Technical data sheet + components · PDF · English · H4 R2 · 2 pages · 792 KB
Open documentInstallation guide · R3
Readable installation steps and original technical references
Read installation guideInstallation guide · R3 PDF
Matching approved PDF
Download installation guide (PDF)Product FAQs
Looking for a Ranger or MaxiFit flange adaptor alternative?
Compare the AQUAFITTING Universal Flange Adaptor against your required pipe outside diameter, flange drilling, working pressure and restraint requirements. Send the original specification with your enquiry so we can check the appropriate AQUAFITTING configuration. Ranger and MaxiFit are reference product names used by other manufacturers; AQUAFITTING supplies its own Universal Flange Adaptor.
Compare catalogue OD ranges · Request a selection review
Select the matching dimension-table row to include that exact specification in your enquiry.
Specify your connection
Send the product name, DN or nominal size, actual pipe outside diameter, pipe material, end condition, working pressure, quantity and destination. Include the drawing or catalogue you require.
