Valve Surface Box
Provide ground-level access to an underground valve operating point. Compare the street and sidewalk versions by installation dimensions and lid arrangement.
Installation fit
This is an access component, not a pressure-containing pipe connector. Select it against the valve operating point and ground installation.
Product overview
Provide ground-level access to an underground valve operating point.
Installation fit
This is an access component, not a pressure-containing pipe connector. Select it against the valve operating point and ground installation.
Connection arrangement
Ground-level lid → valve operating access
Connection and selection
Operating access
Locate the surface box over the underground valve operating point and check the required access dimensions.
Version and lid
Select the documented street or sidewalk version and the required lid option.
Site requirement
Confirm any required load classification separately; the version name is not a load-rating declaration.

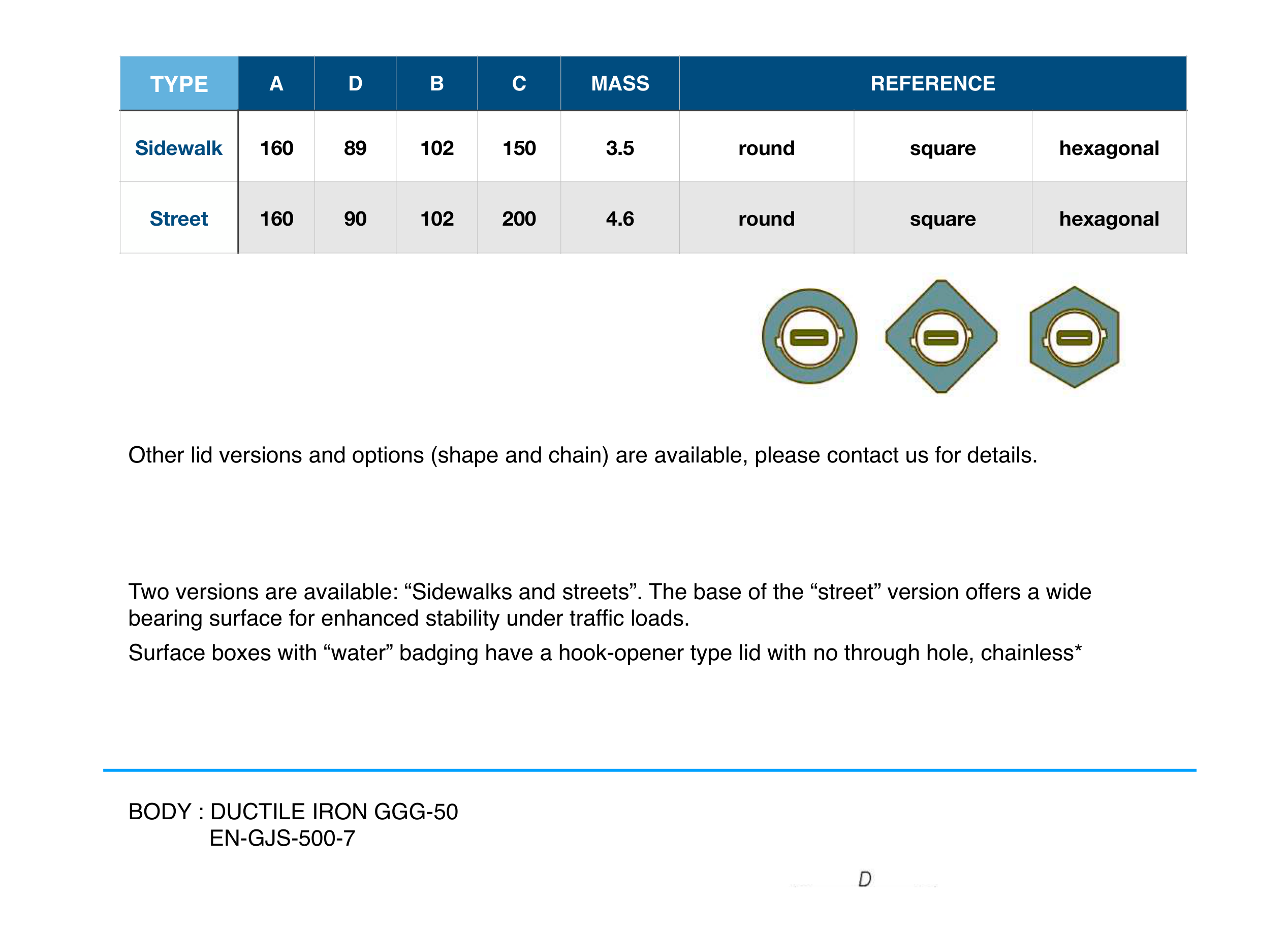

Catalogue dimensions

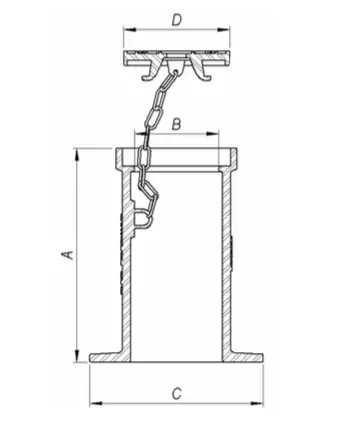

Source: AQUAFITTING English catalogue 2023, page 43. Dimension symbols follow the corresponding source drawing. Confirm the selected configuration and current dimensions before ordering. Catalogue reference configurations only; confirm the selected lid and body arrangement.
Technical evidence
Compare the body and lid dimensions with the valve operating point and finished ground level. The street or sidewalk version name does not establish a load rating; confirm the required classification and current drawing.
Technical Downloads
Product selection
Specify the installation location, street or sidewalk version, body and lid arrangement, required access dimensions, quantity and destination. Confirm any required load classification against the selected model.
