Universal-to-PE Transition Coupling
Connect a PE-specific end to a separately selected universal-range end. The two ends have different selection requirements.
Pipe compatibility
PE at the PE-specific end. Confirm the material compatibility and OD range independently at the universal end.
Product overview
Connect a PE-specific end to a separately selected universal-range end.
Pipe compatibility
PE at the PE-specific end. Confirm the material compatibility and OD range independently at the universal end.
Connection arrangement
PE pipe end → transition coupling → separately selected pipe end
Connection and selection
PE end
Specify the PE pipe OD, wall dimensions and support requirements for the selected assembly.
Universal-range end
Specify the pipe material and measured OD at the other end. Match its own sealing interval.
Grip and restraint
Review gripping or restraint for each end separately; a feature at one end does not establish the performance of the whole connection.

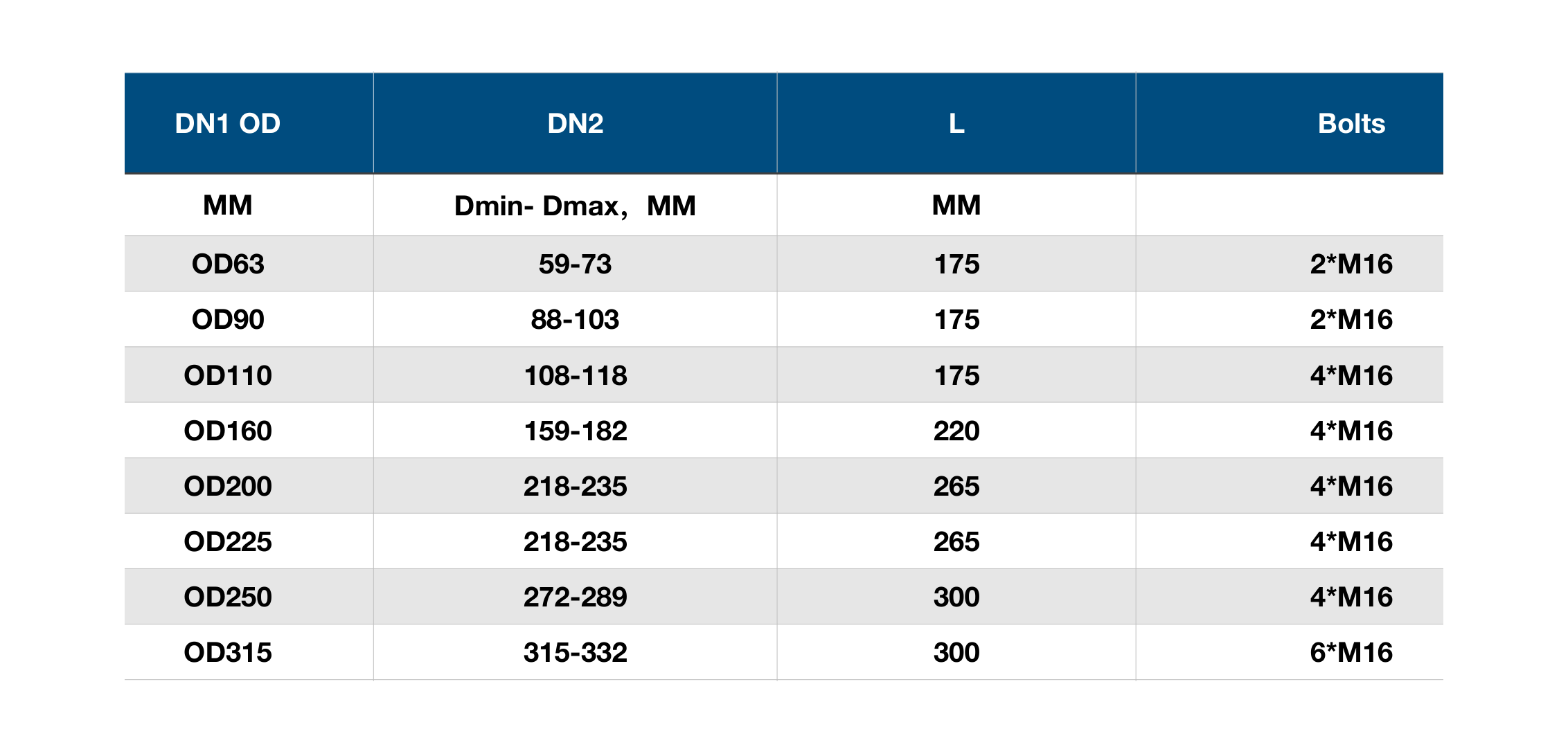

Catalogue dimensions

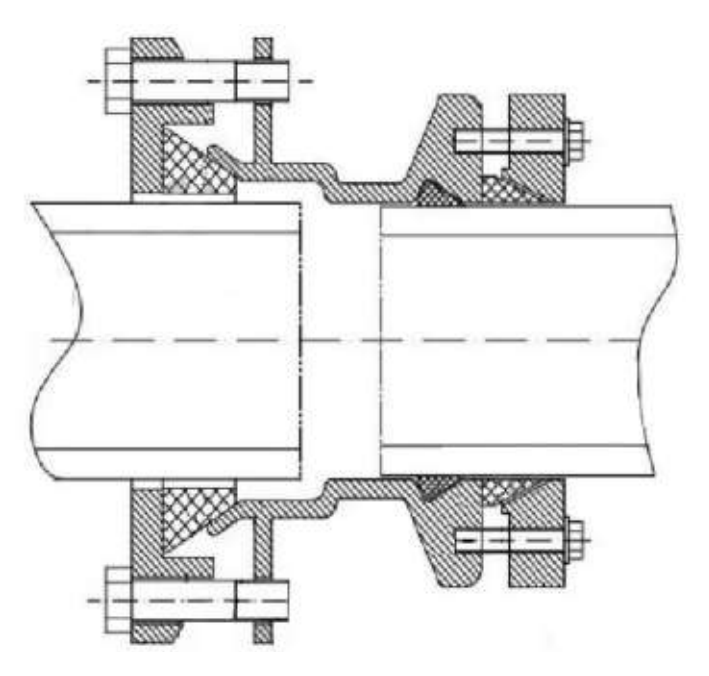

Source: AQUAFITTING English catalogue 2023, page 31. Dimension symbols follow the corresponding source drawing. Confirm the selected configuration and current dimensions before ordering.
Technical evidence
Review the product identity and available resources, then send the required size or measured outside diameter, pipe material, connection details, operating conditions, quantity, destination and supporting files.
Technical Downloads
Product selection
product name; DN or nominal size; actual pipe outside diameter; pipe material; end condition; working pressure; quantity; destination; required drawing or catalogue
