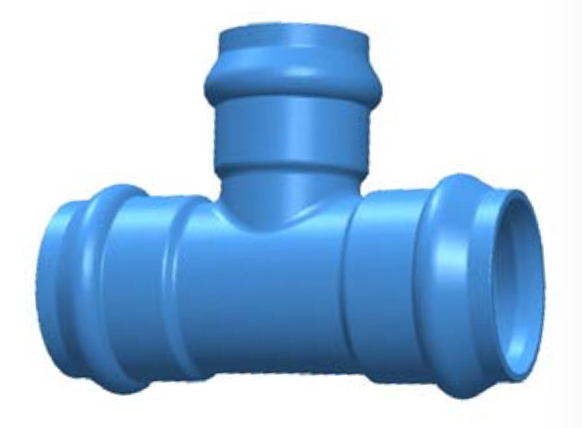

All Socket Tee
Create a branch in a PVC pipeline. Three socket interfaces connect the main line and branch. Specify the main DN and branch dn separately.
Pipe compatibility
PVC is the mating pipe material. The fitting body is ductile iron; body material and pipe material are separate specifications.
Product overview
Create a branch in a PVC pipeline.
Pipe compatibility
PVC is the mating pipe material. The fitting body is ductile iron; body material and pipe material are separate specifications.
Connection arrangement
PVC main line → PVC branch through three socket interfaces
Three sockets. One branch connection.
Main line
Two aligned sockets form the main-line connection. Match the pipe and socket configuration for the selected size.
Branch connection
The third socket forms the branch. Specify main DN and branch dn when requesting the tee.
Assembly selection
Confirm the pipe dimensions and gasket configuration. The historical PVC Fitting 2022 drawing is a reference; request the current size schedule.
Catalogue dimensions

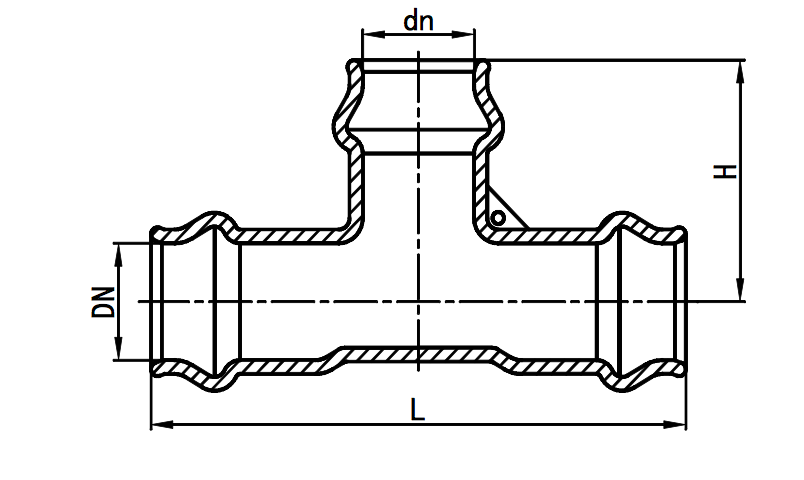

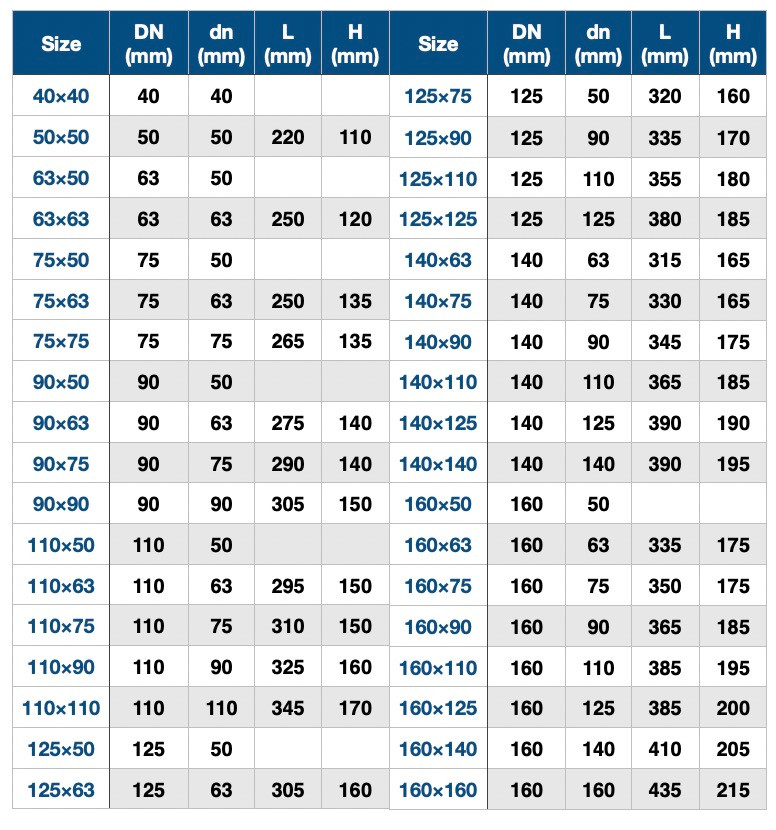

Source: AQUAFITTING PVC fitting 2022, page 4. Dimension symbols follow the corresponding source drawing. Confirm the selected configuration and current dimensions before ordering. — means not stated in the source. Match each dimension symbol to this product drawing. The conflicting 125×75 source row is excluded.
| Size | DN (mm) | dn (mm) | L (mm) | H (mm) |
|---|---|---|---|---|
| 40×40 | 40 | 40 | — | — |
| 50×50 | 50 | 50 | 220 | 110 |
| 63×50 | 63 | 50 | — | — |
| 63×63 | 63 | 63 | 250 | 120 |
| 75×50 | 75 | 50 | — | — |
| 75×63 | 75 | 63 | 250 | 135 |
| 75×75 | 75 | 75 | 265 | 135 |
| 90×50 | 90 | 50 | — | — |
| 90×63 | 90 | 63 | 275 | 140 |
| 90×75 | 90 | 75 | 290 | 140 |
| 90×90 | 90 | 90 | 305 | 150 |
| 110×50 | 110 | 50 | — | — |
| 110×63 | 110 | 63 | 295 | 150 |
| 110×75 | 110 | 75 | 310 | 150 |
| 110×90 | 110 | 90 | 325 | 160 |
| 110×110 | 110 | 110 | 345 | 170 |
| 125×50 | 125 | 50 | — | — |
| 125×63 | 125 | 63 | 305 | 160 |
| 125×90 | 125 | 90 | 335 | 170 |
| 125×110 | 125 | 110 | 355 | 180 |
| 125×125 | 125 | 125 | 380 | 185 |
| 140×63 | 140 | 63 | 315 | 165 |
| 140×75 | 140 | 75 | 330 | 165 |
| 140×90 | 140 | 90 | 345 | 175 |
| 140×110 | 140 | 110 | 365 | 185 |
| 140×125 | 140 | 125 | 390 | 190 |
| 140×140 | 140 | 140 | 390 | 195 |
| 160×50 | 160 | 50 | — | — |
| 160×63 | 160 | 63 | 335 | 175 |
| 160×75 | 160 | 75 | 350 | 175 |
| 160×90 | 160 | 90 | 365 | 185 |
| 160×110 | 160 | 110 | 385 | 195 |
| 160×125 | 160 | 125 | 385 | 200 |
| 160×140 | 160 | 140 | 410 | 205 |
| 160×160 | 160 | 160 | 435 | 215 |
| 200×50 | 200 | 50 | — | — |
| 200×63 | 200 | 63 | 390 | 195 |
| 200×75 | 200 | 75 | — | — |
| 200×90 | 200 | 90 | 420 | 205 |
| 200×110 | 200 | 110 | 440 | 215 |
| 200×125 | 200 | 125 | 440 | 220 |
| 200×140 | 200 | 140 | 465 | 225 |
| 200×160 | 200 | 160 | 490 | 235 |
| 200×200 | 200 | 200 | 520 | 245 |
| 250×50 | 250 | 50 | — | — |
| 250×63 | 250 | 63 | — | — |
| 250×75 | 250 | 75 | — | — |
| 250×90 | 250 | 90 | 475 | 230 |
| 250×110 | 250 | 110 | 495 | 240 |
| 250×125 | 250 | 125 | — | — |
| 250×140 | 250 | 140 | — | — |
| 250×160 | 250 | 160 | 545 | 260 |
| 250×200 | 250 | 200 | 570 | 270 |
| 250×225 | 250 | 225 | 590 | 280 |
| 250×250 | 250 | 250 | 620 | 290 |
| 315×50 | 315 | 50 | — | — |
| 315×63 | 315 | 63 | — | — |
| 315×75 | 315 | 75 | — | — |
| 315×90 | 315 | 90 | — | — |
| 315×110 | 315 | 110 | 545 | 275 |
| 315×125 | 315 | 125 | — | — |
| 315×140 | 315 | 140 | 595 | 295 |
| 315×160 | 315 | 160 | 620 | 305 |
| 315×200 | 315 | 200 | 620 | 305 |
| 315×225 | 315 | 225 | — | — |
| 315×250 | 315 | 250 | 670 | 325 |
| 315×280 | 315 | 280 | 695 | 335 |
| 315×315 | 315 | 315 | 745 | 350 |
Technical Downloads
Request current drawings and product documents for your selected configuration.
Historical catalogue references
Original reference images are retained below. Confirm current dimensions, pressure, materials and suitability for the selected configuration before quotation.
Drawing / table / product reference 1 · Drawing / table / product reference 2 · Drawing / table / product reference 3 · Drawing / table / product reference 4 · Other catalogue photo 1 · Other catalogue photo 2 · Other catalogue photo 3 · Other catalogue photo 4 · Other catalogue photo 5 · Other catalogue photo 6
Product FAQs
What should I send for a All Socket Tee enquiry?
Send the required DN/OD and any main/branch or inlet/outlet size, working pressure, flange drilling or socket/pipe details, quantity, destination and any project drawing or document requirement.
What technical evidence is available for All Socket Tee?
Aquafitting-owned evidence is recorded as Aquafitting-owned PVC Fitting 2022 catalogue, showing product-specific DN/dn, L and H dimension rows with an owned drawing. It is historical selection evidence and must be checked against the current enquiry before quotation.
Which details still require Aquafitting confirmation?
Confirm current size availability, working pressure, material, gasket, coating, flange drilling or socket/pipe interface, dimensions, mass, standard applicability, documents and project suitability before quotation.
Product selection
product name; required DN/OD and any main/branch or inlet/outlet size; working pressure or pressure class; flange drilling or socket/pipe details; material/coating requirement; quantity; destination; required documents; project drawing if available
