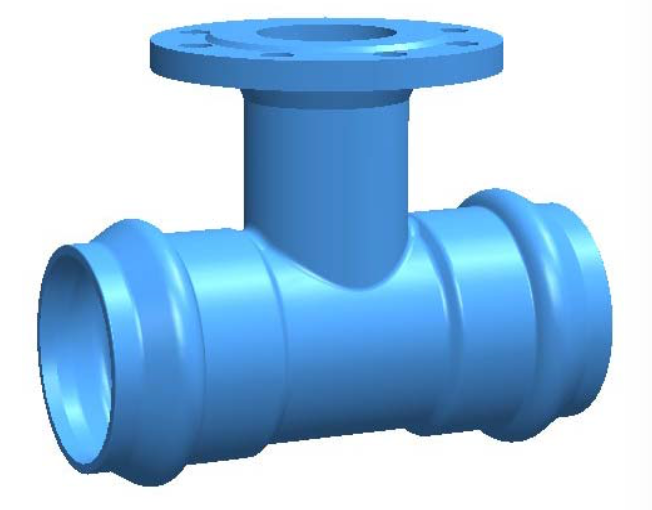

Double Socket Tee with Fixed Flange
Create a fixed-flange branch from a PVC main line. Two sockets serve the main line; the branch has a separate flange interface.
Pipe compatibility
PVC pipe at the socket connection. Match the actual pipe outside diameter, socket geometry and gasket configuration.
Product overview
Create a fixed-flange branch from a PVC main line.
Pipe compatibility
PVC pipe at the socket connection. Match the actual pipe outside diameter, socket geometry and gasket configuration.
Connection arrangement
PVC socket main line → fixed-flange branch
Connection and selection
Main-line sockets
Specify the main-pipe outside diameter and match both sockets to the selected pipe system.
Branch flange
Specify the branch nominal size and flange drilling separately from the main-pipe size.
Branch geometry

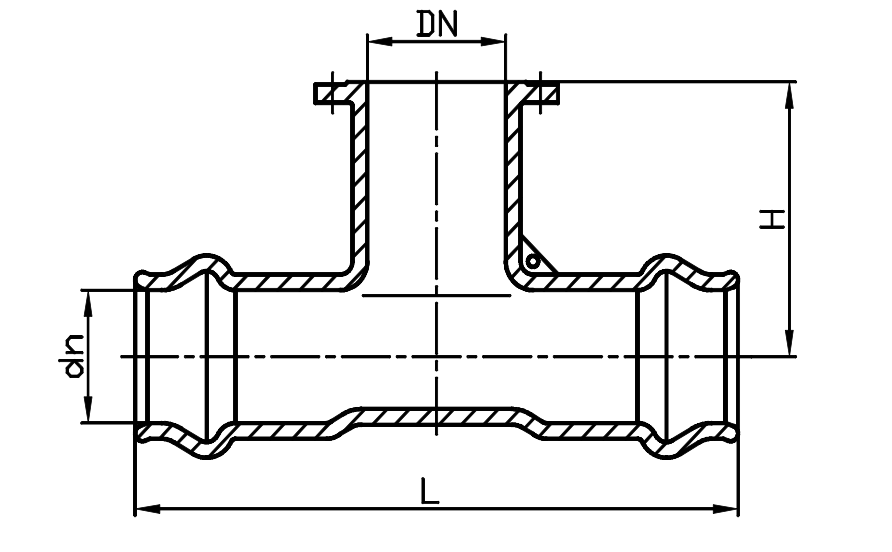

Use the fixed-flange tee drawing for the branch position and installation dimensions. The different tee arrangements have separate size schedules.
Catalogue dimensions
Source: AQUAFITTING PVC fitting 2022, page 5. Dimension symbols follow the corresponding source drawing. Confirm the selected configuration and current dimensions before ordering. — means not stated in the source. Match each dimension symbol to this product drawing.
| Size | dn (mm) | DN (mm) | L (mm) | H (mm) |
|---|---|---|---|---|
| 40×40 | 40 | 40 | 200 | 130 |
| 50×40 | 50 | 40 | 220 | 130 |
| 63×40 | 63 | 40 | 250 | 140 |
| 63×50 | 63 | 50 | 250 | 140 |
| 63×60 | 63 | 60 | 250 | 140 |
| 63×65 | 63 | 65 | 250 | 140 |
| 75×40 | 75 | 40 | 240 | 130 |
| 75×50 | 75 | 50 | 250 | 140 |
| 75×60 | 75 | 60 | 265 | 140 |
| 75×65 | 75 | 65 | 265 | 140 |
| 75×80 | 75 | 80 | 265 | 140 |
| 90×40 | 90 | 40 | 265 | 135 |
| 90×50 | 90 | 50 | 275 | 145 |
| 90×60 | 90 | 60 | 290 | 155 |
| 90×65 | 90 | 65 | 290 | 155 |
| 90×80 | 90 | 80 | 305 | 160 |
| 110×40 | 110 | 40 | 285 | 145 |
| 110×50 | 110 | 50 | 295 | 145 |
| 110×60 | 110 | 60 | 310 | 165 |
| 110×65 | 110 | 65 | 310 | 165 |
| 110×80 | 110 | 80 | 325 | 170 |
| 110×100 | 110 | 100 | 345 | 170 |
| 125×40 | 125 | 40 | 295 | 160 |
| 125×50 | 125 | 50 | 305 | 160 |
| 125×60 | 125 | 60 | 320 | 160 |
| 125×65 | 125 | 65 | 320 | 160 |
| 125×80 | 125 | 80 | 335 | 170 |
| 125×100 | 125 | 100 | 355 | 180 |
| 125×125 | 125 | 125 | 380 | 180 |
| 160×40 | 160 | 40 | 325 | 170 |
| 160×50 | 160 | 50 | 335 | 170 |
| 160×60 | 160 | 60 | 350 | 190 |
| 160×65 | 160 | 65 | 350 | 190 |
| 160×80 | 160 | 80 | 365 | 200 |
| 160×100 | 160 | 100 | 385 | 205 |
| 160×125 | 160 | 125 | 410 | 210 |
| 160×150 | 160 | 150 | 435 | 220 |
| 200×40 | 200 | 40 | 380 | 195 |
| 200×50 | 200 | 50 | 390 | 195 |
| 200×60 | 200 | 60 | 405 | 215 |
| 200×65 | 200 | 65 | 405 | 215 |
| 200×80 | 200 | 80 | 420 | 225 |
| 200×100 | 200 | 100 | 440 | 230 |
| 200×125 | 200 | 125 | 465 | 240 |
| 200×150 | 200 | 150 | 490 | 245 |
| 200×200 | 200 | 200 | 540 | 250 |
| 225×40 | 225 | 40 | 400 | 195 |
| 225×50 | 225 | 50 | 410 | 195 |
| 225×60 | 225 | 60 | 425 | 215 |
| 225×65 | 225 | 65 | 425 | 215 |
| 225×80 | 225 | 80 | 440 | 225 |
| 225×100 | 225 | 100 | 460 | 230 |
| 225×125 | 225 | 125 | 485 | 240 |
| 225×150 | 225 | 150 | 510 | 245 |
| 225×200 | 225 | 200 | 560 | 260 |
| 250×60 | 250 | 60 | 460 | 250 |
| 250×65 | 250 | 65 | 460 | 250 |
| 250×80 | 250 | 80 | 475 | 250 |
| 250×100 | 250 | 100 | 495 | 255 |
| 250×125 | 250 | 125 | 520 | 260 |
| 250×150 | 250 | 150 | 545 | 265 |
| 250×200 | 250 | 200 | 595 | 275 |
| 250×250 | 250 | 250 | 645 | 285 |
| 315×60 | 315 | 60 | 510 | 290 |
| 315×65 | 315 | 65 | 510 | 290 |
| 315×80 | 315 | 80 | 525 | 290 |
| 315×100 | 315 | 100 | 545 | 300 |
| 315×125 | 315 | 125 | 570 | 305 |
| 315×150 | 315 | 150 | 595 | 310 |
| 315×200 | 315 | 200 | 645 | 310 |
| 315×250 | 315 | 250 | 695 | 310 |
| 315×300 | 315 | 300 | 745 | 310 |
Technical Downloads
Request current drawings and product documents for your selected configuration.
Historical catalogue references
Original reference images are retained below. Confirm current dimensions, pressure, materials and suitability for the selected configuration before quotation.
Drawing / table / product reference 1 · Drawing / table / product reference 2 · Drawing / table / product reference 3 · Drawing / table / product reference 4 · Other catalogue photo 1 · Other catalogue photo 2 · Other catalogue photo 3 · Other catalogue photo 4
Product FAQs
What should I send for a Double Socket Tee with Fixed Flange enquiry?
Send the required DN/OD and any main/branch or inlet/outlet size, working pressure, flange drilling or socket/pipe details, quantity, destination and any project drawing or document requirement.
What technical evidence is available for Double Socket Tee with Fixed Flange?
Aquafitting-owned evidence is recorded as Aquafitting-owned PVC Fitting 2022 catalogue, showing product-specific dn/DN, L and H dimension rows with an owned drawing. It is historical selection evidence and must be checked against the current enquiry before quotation.
Which details still require Aquafitting confirmation?
Confirm current size availability, working pressure, material, gasket, coating, flange drilling or socket/pipe interface, dimensions, mass, standard applicability, documents and project suitability before quotation.
Product selection
product name; required DN/OD and any main/branch or inlet/outlet size; working pressure or pressure class; flange drilling or socket/pipe details; material/coating requirement; quantity; destination; required documents; project drawing if available
