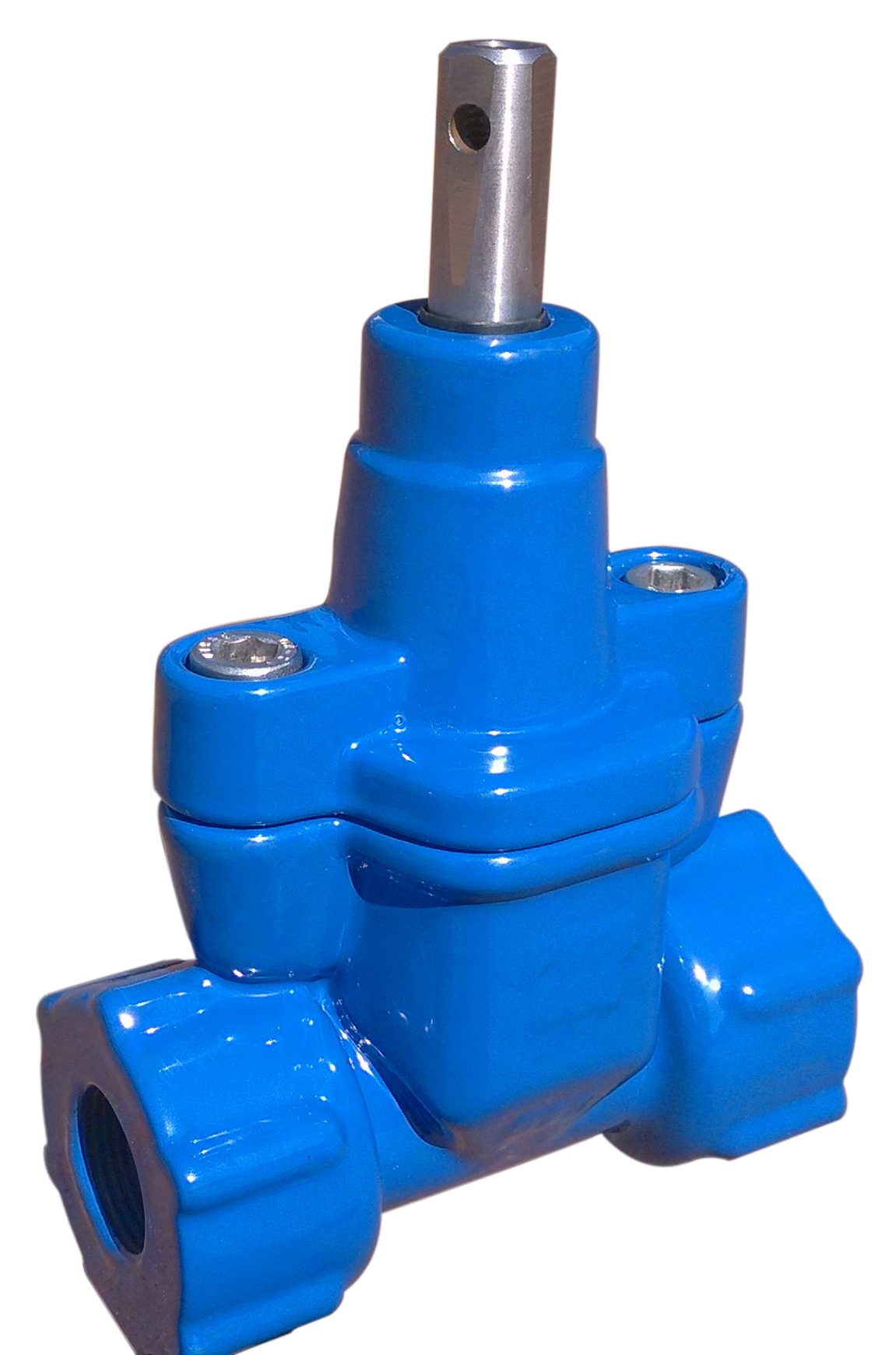

Service Gate Valve — Female × Female Thread (FF)
Isolate flow in a house-connection assembly. This service connection gate valve has female threads at both ends (FF).
Connection interface
Connects through matching threaded components. Specify the thread designation and size; the valve body material does not determine the connected pipe material.
Product overview
Isolate flow in a house-connection assembly.
Connection interface
Connects through matching threaded components. Specify the thread designation and size; the valve body material does not determine the connected pipe material.
Connection arrangement
Female thread → valve → female thread
Connection and selection
Thread arrangement
Select the female-to-female configuration and confirm the mating thread at each end.
Isolation point
Place the valve in the intended house-connection assembly and check access for operation.
Installation dimensions

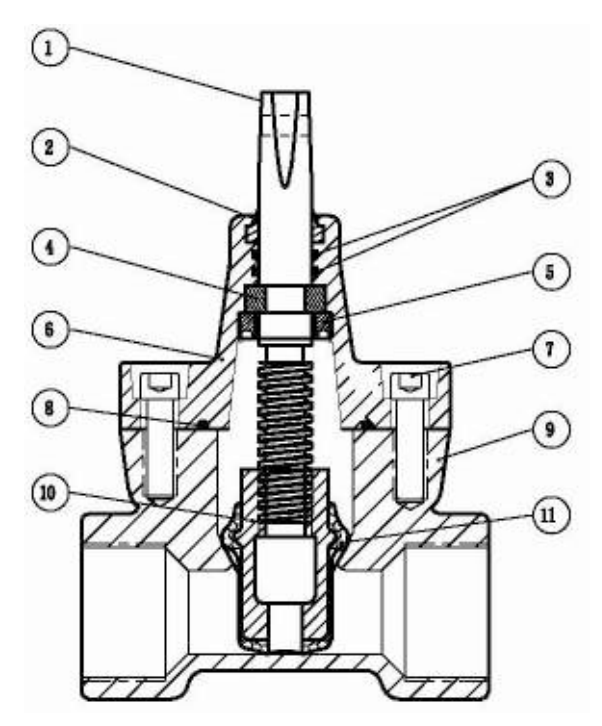

Use the exact FF or MF drawing for valve dimensions and installation clearance.

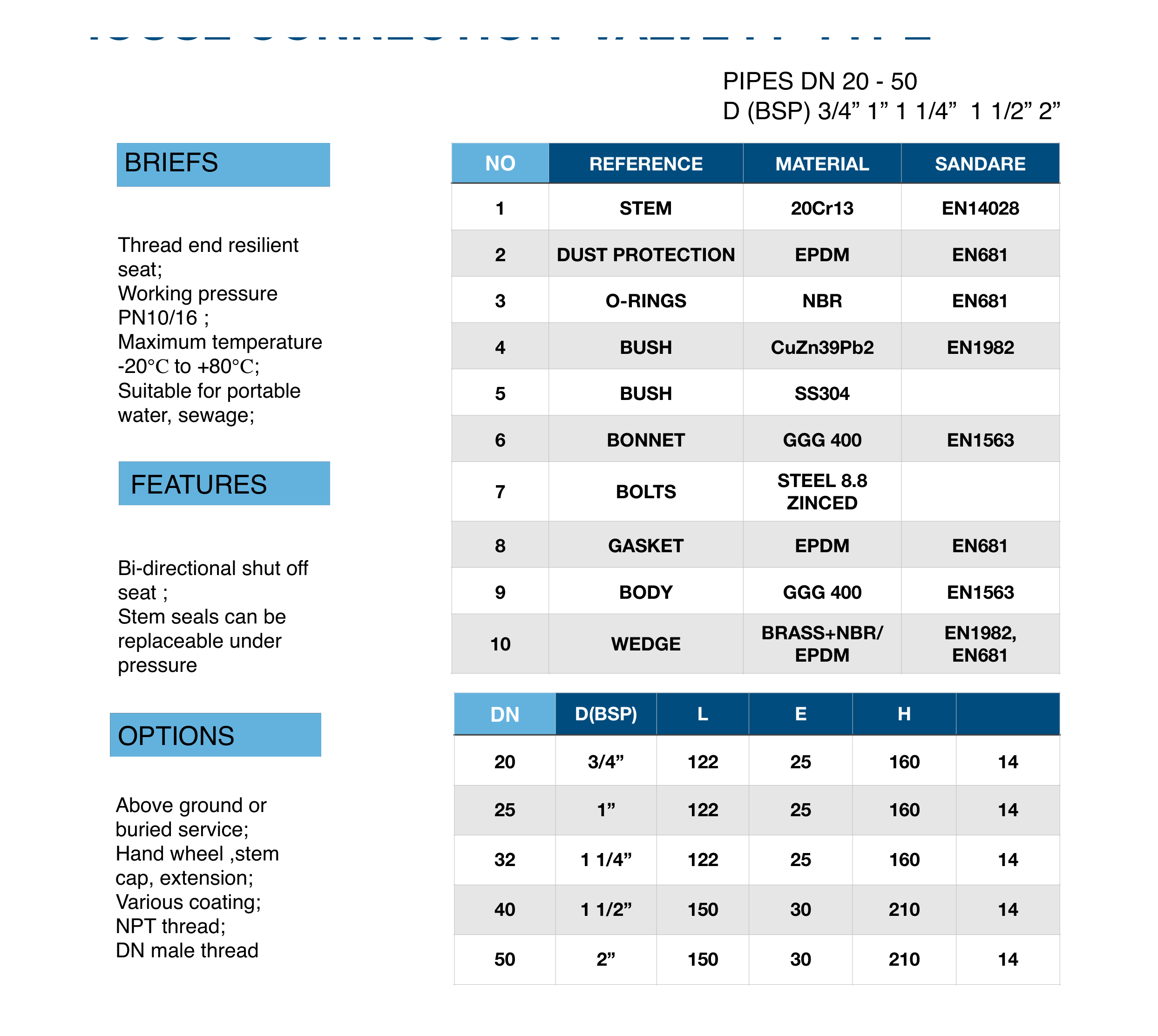

Catalogue dimensions
Source: AQUAFITTING English catalogue 2023, page 40. Dimension symbols follow the corresponding source drawing. Confirm the selected configuration and current dimensions before ordering. Request the matching drawing for additional installation dimensions.
Technical evidence
Review the product identity and available resources, then send the required size or measured outside diameter, pipe material, connection details, operating conditions, quantity, destination and supporting files.
Technical Downloads
Product selection
product name; service connection size; pipe material; end connection requirement; working pressure; quantity; destination
