Service Gate Valve for PE Pipes — ISO-Fitting Ends
Isolate a PE service connection. This service connection gate valve has ISO-fitting ends for PE pipes. Select the valve by the PE pipe outside diameter shown in the dimension table.
Pipe compatibility
PE pipe. Match the pipe outside diameter and end configuration to the valve drawing.
Product overview
Isolate a PE service connection.
Pipe compatibility
PE pipe. Match the pipe outside diameter and end configuration to the valve drawing.
Connection arrangement
PE pipe → ISO-fitting service valve → PE pipe
Connection and selection
Pipe connection
Select both ISO-fitting ends by the PE pipe outside diameter.
Valve size
Select the PE pipe outside diameter first, then read the corresponding valve DN in the table. For example, PE pipe OD 32 mm corresponds to valve DN25.
Product reference
ISO-fitting describes the end arrangement. Retain the confirmed AQF-V02 product reference when requesting matching documents.
Catalogue dimensions

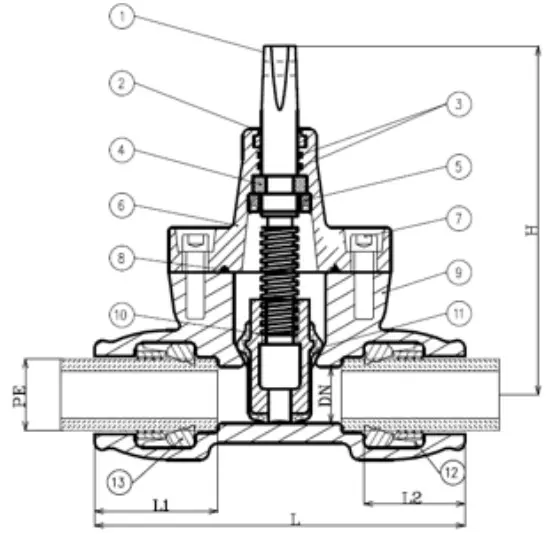

Source: AQUAFITTING English catalogue 2023, page 42. Dimension symbols follow the corresponding source drawing. Confirm the selected configuration and current dimensions before ordering.
Technical evidence
Review the product identity and available resources, then send the required size or measured outside diameter, pipe material, connection details, operating conditions, quantity, destination and supporting files.
Technical Downloads
Product selection
product name; service connection size; pipe material; end connection requirement; working pressure; quantity; destination
