Tapping Saddle with Flanged Outlet

Create a flanged branch on a compatible main pipe. The Tapping Saddle with Flange Branch has its own main-pipe fit and branch dimensions.

Pipe compatibility
Pipe-material compatibility must be confirmed for the selected configuration. Supply the actual pipe material and measured outside diameter.

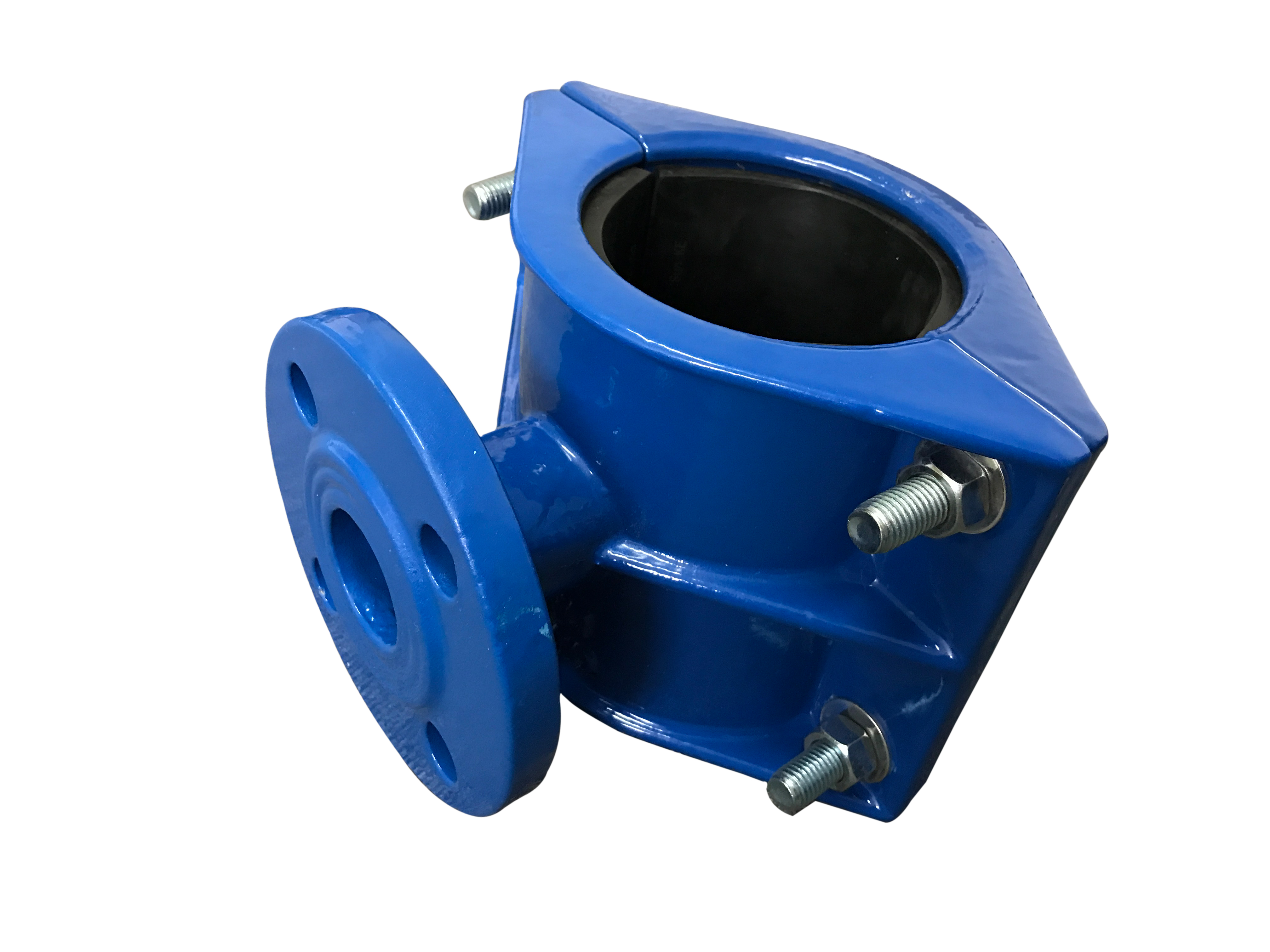

Aquafitting Tapping Saddle for Pipe with Flange Branch product view.

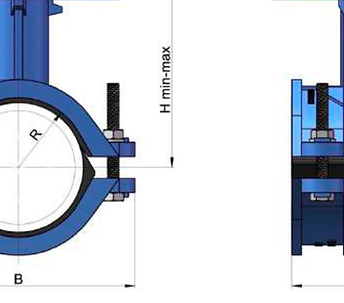

Technical drawing for Aquafitting Tapping Saddle for Pipe with Flange Branch.View original illustration
Request a QuoteProduct summary · PDF · English · V2026.08 · 98 KB

Product overview

Create a flanged branch on a compatible main pipe.

Pipe compatibility

Pipe-material compatibility must be confirmed for the selected configuration. Supply the actual pipe material and measured outside diameter.

Connection arrangement

Main pipe → saddle → flanged branch

Request a Quote

Connection and selection

Main-pipe fit

Select the actual pipe OD using this product’s own dimensional schedule.

Outlet flange

Specify outlet flange DN and drilling separately from the main-pipe OD.

Dedicated design

Use the exact saddle drawing. The different flanged saddles and repair collars with outlets are separate designs.

Request a Quote

Catalogue dimensions

Source: AQUAFITTING English catalogue 2023, page 21. Dimension symbols follow the corresponding source drawing. Confirm the selected configuration and current dimensions before ordering.

Tapping Saddle with Flanged Outlet — Catalogue dimensions
SizeD min–maxFlange EXT.BHH min–maxLRBolts
DN60 /DN4068-78185153100150-15511545M10-70
DN80 /DN4089-101185185100162.5-167.511568M10-70
DN100 /DN40105-120185214100172-17915074M12-100
DN125 /DN40136-151185269100186-19317081M12-100
DN150 /DN40160-175185280100199-20717093M12-100
DN200 /DN40213-228185358100226-234200120M12-100
DN225 /DN40243-253185385100240-246200130M12-100
DN250 /DN40260-275185396100270-278200150M12-100

Technical evidence

Review the product identity and available resources, then send the required size or measured outside diameter, pipe material, connection details, operating conditions, quantity, destination and supporting files.

Technical Downloads

Product summary · PDF · English · V2026.08 · 98 KB

Catalogues & Downloads

Open technical drawing at full size

Open dimension table at full size

Tapping Saddle for Pipe with Flange Branch

Tapping Saddle for Pipe with Flange Branch

Product selection

product name; main pipe outside diameter; main pipe material; outlet or branch requirement; working pressure; whether work is under pressure; quantity; destination

Request a Quote

Tapping Saddle with Flanged Outlet

Aquafitting Tapping Saddle for Pipe with Flange Branch product view.

Create a flanged branch on a compatible main pipe. The Tapping Saddle with Flange Branch has its own main-pipe fit and branch dimensions.

Pipe compatibility
Pipe-material compatibility must be confirmed for the selected configuration. Supply the actual pipe material and measured outside diameter.

Product summary · PDF · English · V2026.08 · 98 KB

Request a Quote

Overview · Specifications · Downloads

Overview

Catalogue dimensions

Size
D min–max
Flange EXT.
B
H
H min–max
L
R
Bolts
DN60 /DN40
68-78
185
153
100
150-155
115
45
M10-70
DN80 /DN40
89-101
185
185
100
162.5-167.5
115
68
M10-70
DN100 /DN40
105-120
185
214
100
172-179
150
74
M12-100
DN125 /DN40
136-151
185
269
100
186-193
170
81
M12-100
DN150 /DN40
160-175
185
280
100
199-207
170
93
M12-100
DN200 /DN40
213-228
185
358
100
226-234
200
120
M12-100
DN225 /DN40
243-253
185
385
100
240-246
200
130
M12-100
DN250 /DN40
260-275
185
396
100
270-278
200
150
M12-100

Source: AQUAFITTING English catalogue 2023, page 21. Dimension symbols follow the corresponding source drawing. Confirm the selected configuration and current dimensions before ordering.

DN60 /DN40

D min–max: 68-78 · Flange EXT.: 185 · B: 153 · H: 100 · H min–max: 150-155 · L: 115 · R: 45 · Bolts: M10-70

DN80 /DN40

D min–max: 89-101 · Flange EXT.: 185 · B: 185 · H: 100 · H min–max: 162.5-167.5 · L: 115 · R: 68 · Bolts: M10-70

DN100 /DN40

D min–max: 105-120 · Flange EXT.: 185 · B: 214 · H: 100 · H min–max: 172-179 · L: 150 · R: 74 · Bolts: M12-100

DN125 /DN40

D min–max: 136-151 · Flange EXT.: 185 · B: 269 · H: 100 · H min–max: 186-193 · L: 170 · R: 81 · Bolts: M12-100

DN150 /DN40

D min–max: 160-175 · Flange EXT.: 185 · B: 280 · H: 100 · H min–max: 199-207 · L: 170 · R: 93 · Bolts: M12-100

DN200 /DN40

D min–max: 213-228 · Flange EXT.: 185 · B: 358 · H: 100 · H min–max: 226-234 · L: 200 · R: 120 · Bolts: M12-100

DN225 /DN40

D min–max: 243-253 · Flange EXT.: 185 · B: 385 · H: 100 · H min–max: 240-246 · L: 200 · R: 130 · Bolts: M12-100

DN250 /DN40

D min–max: 260-275 · Flange EXT.: 185 · B: 396 · H: 100 · H min–max: 270-278 · L: 200 · R: 150 · Bolts: M12-100

Product overview

Create a flanged branch on a compatible main pipe.

Pipe compatibility

Pipe-material compatibility must be confirmed for the selected configuration. Supply the actual pipe material and measured outside diameter.

Connection arrangement

Main pipe → saddle → flanged branch

Request a Quote

Technical evidence

Review the product identity and available resources, then send the required size or measured outside diameter, pipe material, connection details, operating conditions, quantity, destination and supporting files.

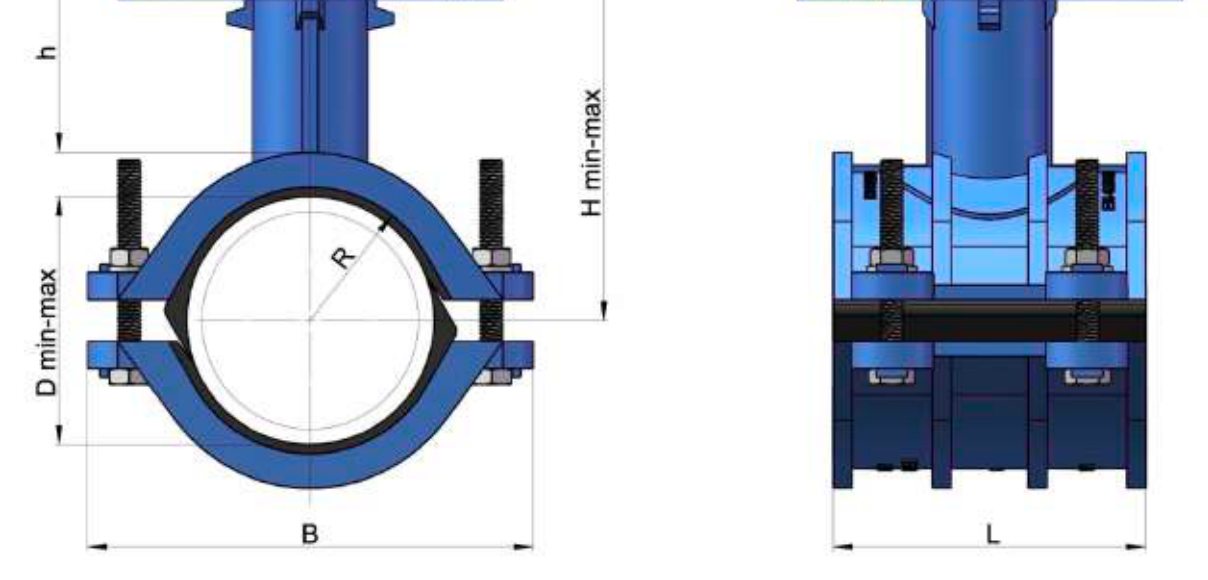

Technical drawing for Aquafitting Tapping Saddle for Pipe with Flange Branch.

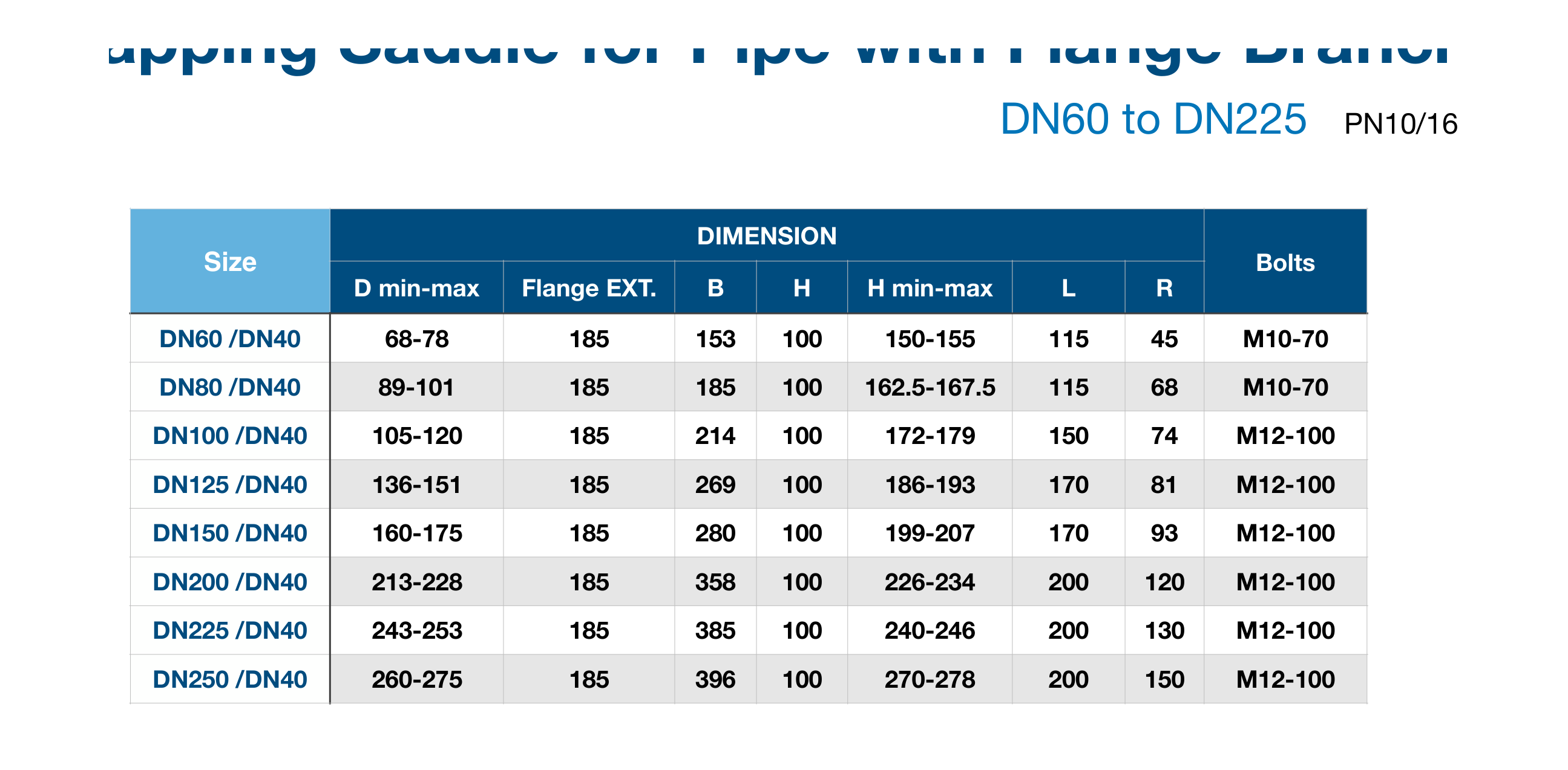

Dimension table for Aquafitting Tapping Saddle for Pipe with Flange Branch.

Connection and selection

Main-pipe fit

Select the actual pipe OD using this product’s own dimensional schedule.

Outlet flange

Specify outlet flange DN and drilling separately from the main-pipe OD.

Dedicated design

Use the exact saddle drawing. The different flanged saddles and repair collars with outlets are separate designs.

Request a Quote

Product selection

product name; main pipe outside diameter; main pipe material; outlet or branch requirement; working pressure; whether work is under pressure; quantity; destination

Request a Quote
