Universal Strap Tapping Saddle

Create a branch using a saddle body and strap assembly. The documented assembly combines a ductile iron saddle body with stainless-steel straps.

Pipe compatibility
Pipe-material compatibility must be confirmed for the selected configuration. Supply the actual pipe material and measured outside diameter.

Product overview

Create a branch using a saddle body and strap assembly.

Pipe compatibility

Pipe-material compatibility must be confirmed for the selected configuration. Supply the actual pipe material and measured outside diameter.

Connection arrangement

Main pipe → strap-mounted saddle → selected outlet

Request a Quote

Connection and selection

Saddle and straps

Select the body and strap arrangement together for the measured main pipe.

Outlet selection

Specify the required outlet and match it to the branch connection.

Installation

Confirm the compatible pipe material, strap configuration and installation procedure for the selected assembly.

Request a Quote

Catalogue dimensions

Source: AQUAFITTING Universal Tapping Saddle, standalone sheet, page 1. Dimension symbols follow the corresponding source drawing. Confirm the selected configuration and current dimensions before ordering. This headstock table does not establish pipe-material compatibility or the required strap configuration. Confirm the selected pipe, headstock and straps.

Universal Strap Tapping Saddle — Catalogue dimensions
Headstock (catalogue range)D (in)AFL
50-10001/25518280
50-10003/45518280
50-100015518280
50-10001 1/45518280
50-10001 1/25518280
50-100025518280
50-10002 1/25518280
50-100035518280

Technical evidence

Review the product identity and available resources, then send the required size or measured outside diameter, pipe material, connection details, operating conditions, quantity, destination and supporting files.

Technical Downloads

Product FAQs

What information is needed to review Universal tapping Saddle?

Please provide product name, main pipe outside diameter, main pipe material, outlet or branch requirement, working pressure, whether work is under pressure, quantity, destination. Aquafitting will confirm the selection against our product records before quotation.

Which documents can be requested for Universal tapping Saddle?

Ask for the current drawing, dimension table, datasheet, catalogue or installation information required for your project. Availability and version will be confirmed before use.

How is the final product selection confirmed?

Final selection depends on the supplied pipe and project details plus our product documentation. Unconfirmed dimensions, materials, pressure values and standards are not treated as approved data.

Product selection

product name; main pipe outside diameter; main pipe material; outlet or branch requirement; working pressure; whether work is under pressure; quantity; destination

Request a Quote

Universal Strap Tapping Saddle

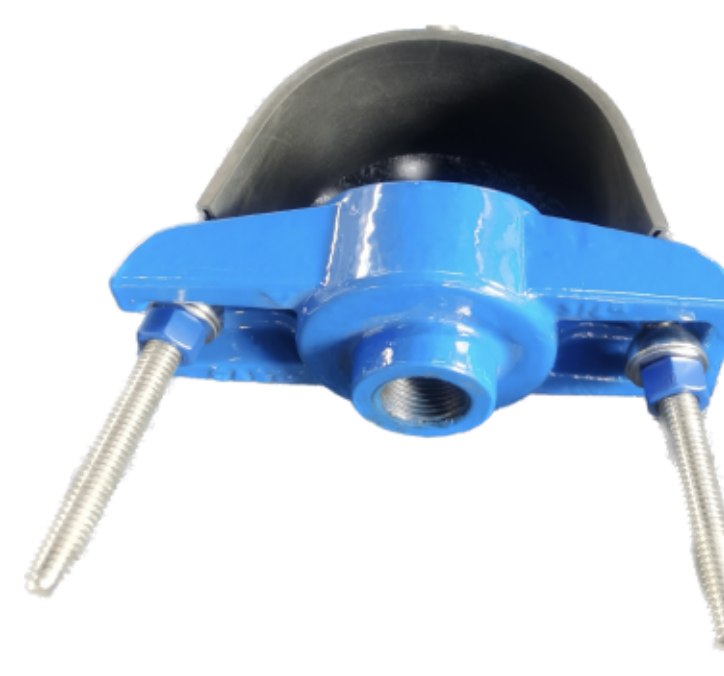

Aquafitting Universal tapping Saddle product view.

Create a branch using a saddle body and strap assembly. The documented assembly combines a ductile iron saddle body with stainless-steel straps.

Pipe compatibility
Pipe-material compatibility must be confirmed for the selected configuration. Supply the actual pipe material and measured outside diameter.

Product summary · PDF · English · V2026.08 · 93 KB

Request a Quote

Overview

Catalogue dimensions

Headstock (catalogue range)
D (in)
A
F
L
50-1000
1/2
55
182
80
50-1000
3/4
55
182
80
50-1000
1
55
182
80
50-1000
1 1/4
55
182
80
50-1000
1 1/2
55
182
80
50-1000
2
55
182
80
50-1000
2 1/2
55
182
80
50-1000
3
55
182
80

Source: AQUAFITTING Universal Tapping Saddle, standalone sheet, page 1. Dimension symbols follow the corresponding source drawing. Confirm the selected configuration and current dimensions before ordering. This headstock table does not establish pipe-material compatibility or the required strap configuration. Confirm the selected pipe, headstock and straps.

50-1000

D (in): 1/2 · A: 55 · F: 182 · L: 80

50-1000

D (in): 3/4 · A: 55 · F: 182 · L: 80

50-1000

D (in): 1 · A: 55 · F: 182 · L: 80

50-1000

D (in): 1 1/4 · A: 55 · F: 182 · L: 80

50-1000

D (in): 1 1/2 · A: 55 · F: 182 · L: 80

50-1000

D (in): 2 · A: 55 · F: 182 · L: 80

50-1000

D (in): 2 1/2 · A: 55 · F: 182 · L: 80

50-1000

D (in): 3 · A: 55 · F: 182 · L: 80

Product overview

Create a branch using a saddle body and strap assembly.

Pipe compatibility

Pipe-material compatibility must be confirmed for the selected configuration. Supply the actual pipe material and measured outside diameter.

Connection arrangement

Main pipe → strap-mounted saddle → selected outlet

Request a Quote

Technical evidence

Review the product identity and available resources, then send the required size or measured outside diameter, pipe material, connection details, operating conditions, quantity, destination and supporting files.

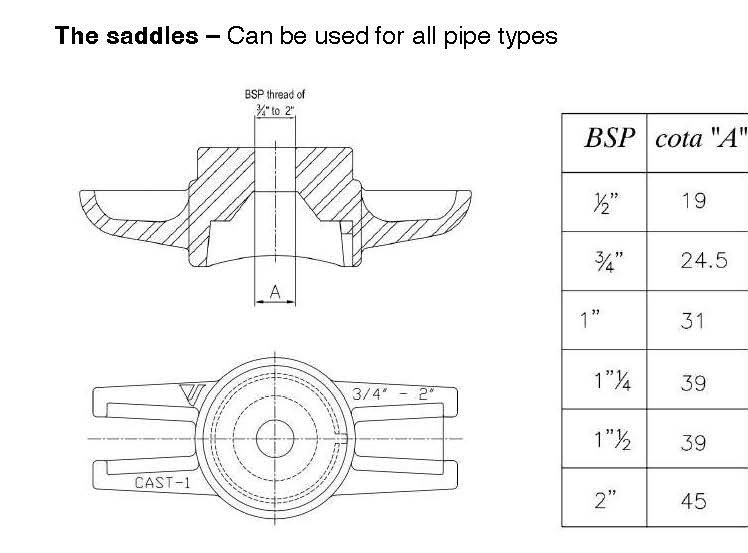

Technical drawing and BSP outlet dimension table for Aquafitting Universal Tapping Saddle.

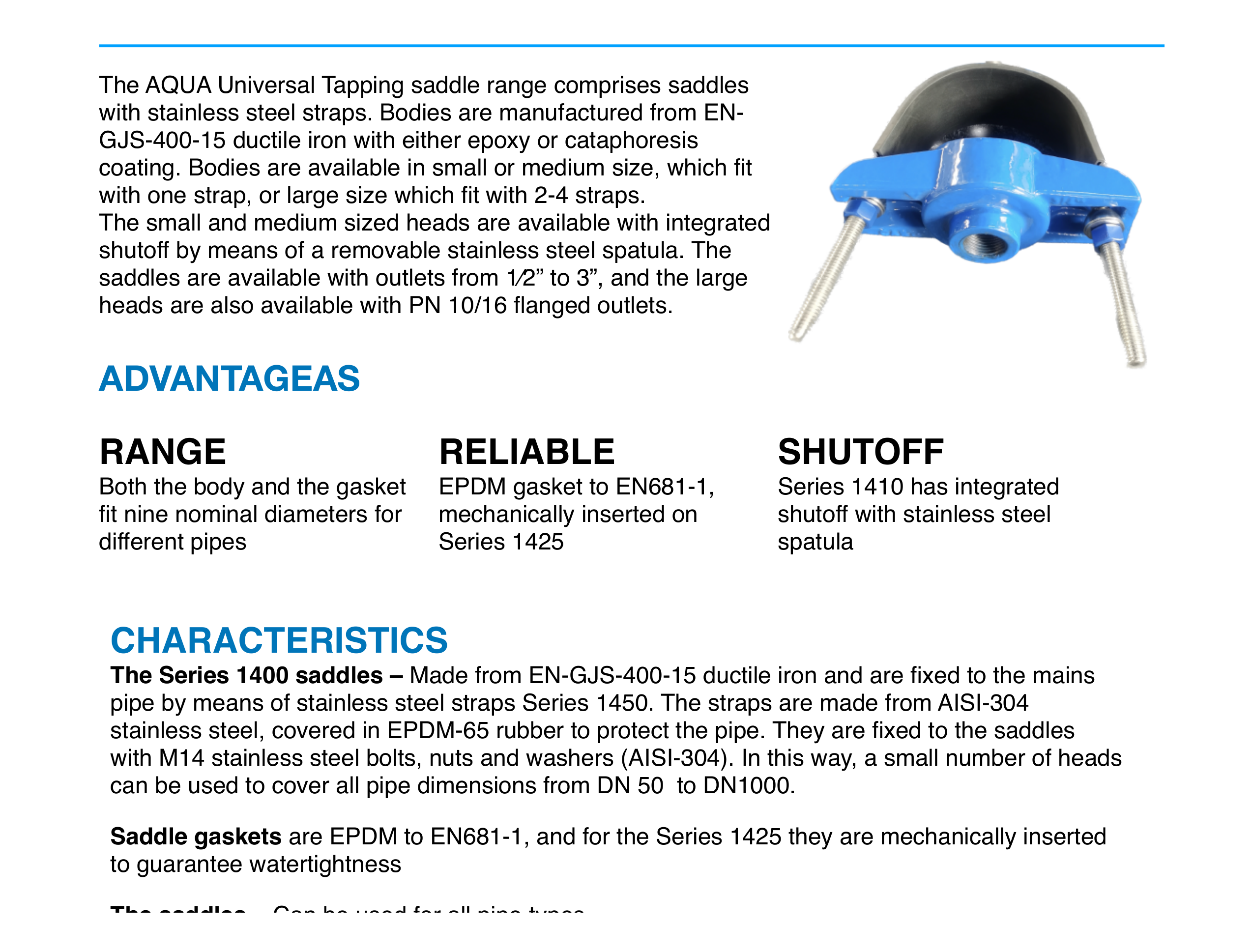

Product overview for Aquafitting Universal Tapping Saddle.

Connection and selection

Saddle and straps

Select the body and strap arrangement together for the measured main pipe.

Outlet selection

Specify the required outlet and match it to the branch connection.

Installation

Confirm the compatible pipe material, strap configuration and installation procedure for the selected assembly.

Request a Quote

Product selection

product name; main pipe outside diameter; main pipe material; outlet or branch requirement; working pressure; whether work is under pressure; quantity; destination

Request a Quote

Product FAQs

What information is needed to review Universal tapping Saddle?

Please provide product name, main pipe outside diameter, main pipe material, outlet or branch requirement, working pressure, whether work is under pressure, quantity, destination. Aquafitting will confirm the selection against our product records before quotation.

Which documents can be requested for Universal tapping Saddle?

Ask for the current drawing, dimension table, datasheet, catalogue or installation information required for your project. Availability and version will be confirmed before use.

How is the final product selection confirmed?

Final selection depends on the supplied pipe and project details plus our product documentation. Unconfirmed dimensions, materials, pressure values and standards are not treated as approved data.

Materials & standards

Body
Ductile iron EN-GJS-450-10 or EN-GJS-500-7


Gaskets (where supplied)
EPDM (WRAS approved material) or NBR


Bolts and nuts (where supplied)
Zinc-plated carbon steel, Dacromet-coated or stainless steel


Coating
Epoxy powder coating, 250 μm nominal (WRAS approved material)


Pressure rating
PN10, PN16, PN25 or PN40, as shown in the size table for each model


Material, bolt and coating options are confirmed in the quotation.
View certificates →
