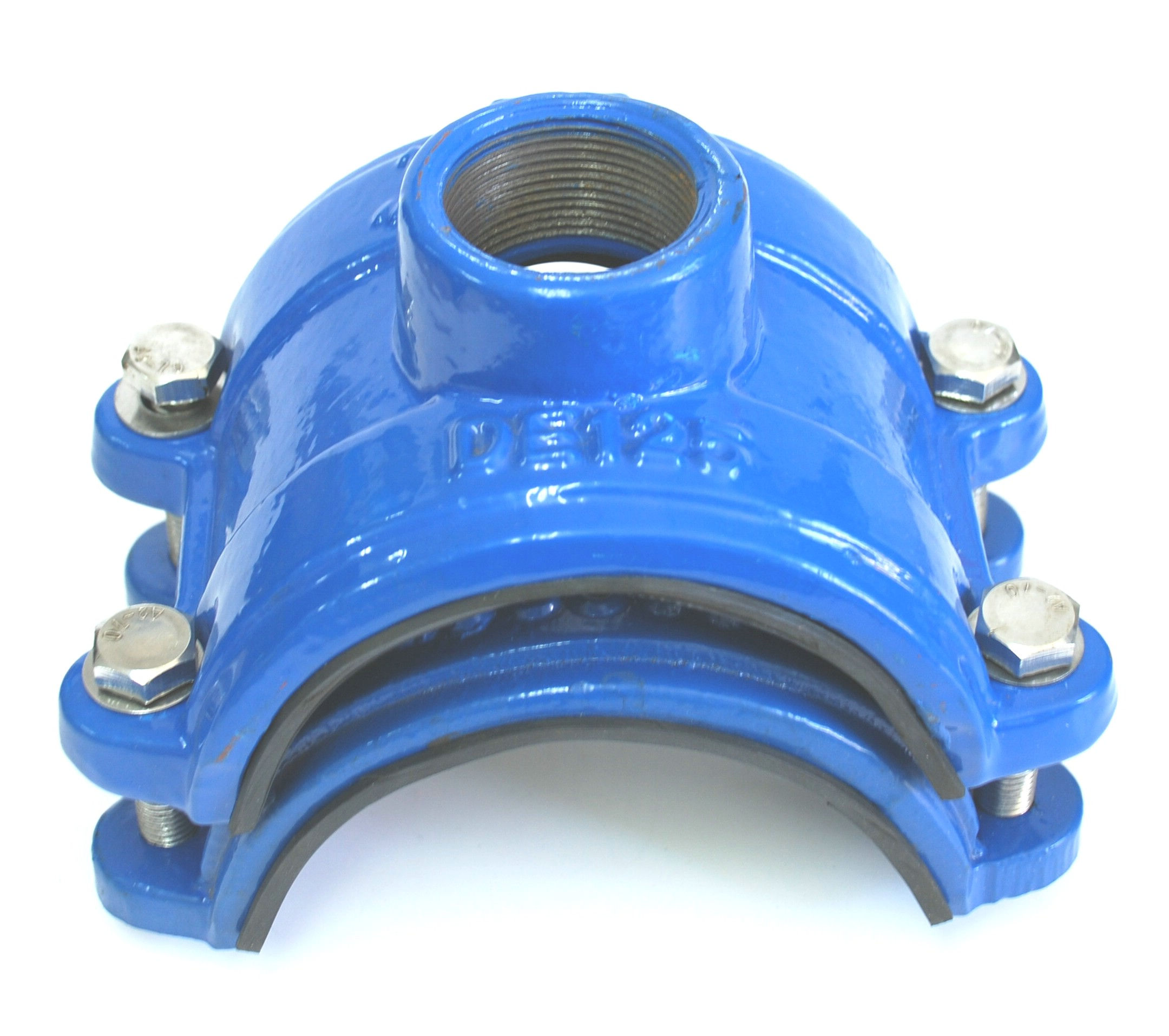

Threaded Tapping Saddle for PVC Pipes
Create a threaded branch on a PVC main pipe. Specify the main-pipe dimensions and the threaded outlet separately.
Pipe compatibility
PVC main pipe in the selected saddle configuration.
Product overview
Create a threaded branch on a PVC main pipe.
Pipe compatibility
PVC main pipe in the selected saddle configuration.
Connection arrangement
PVC main → threaded branch
Connection and selection
Main-pipe fit
Match the saddle to the main pipe outside diameter and the product-specific drawing.
Threaded outlet
Specify the outlet thread designation and size independently of the main-pipe size.
Dedicated configuration
Select this threaded saddle using its own drawing. A separate under-pressure collar has its own installation requirements.

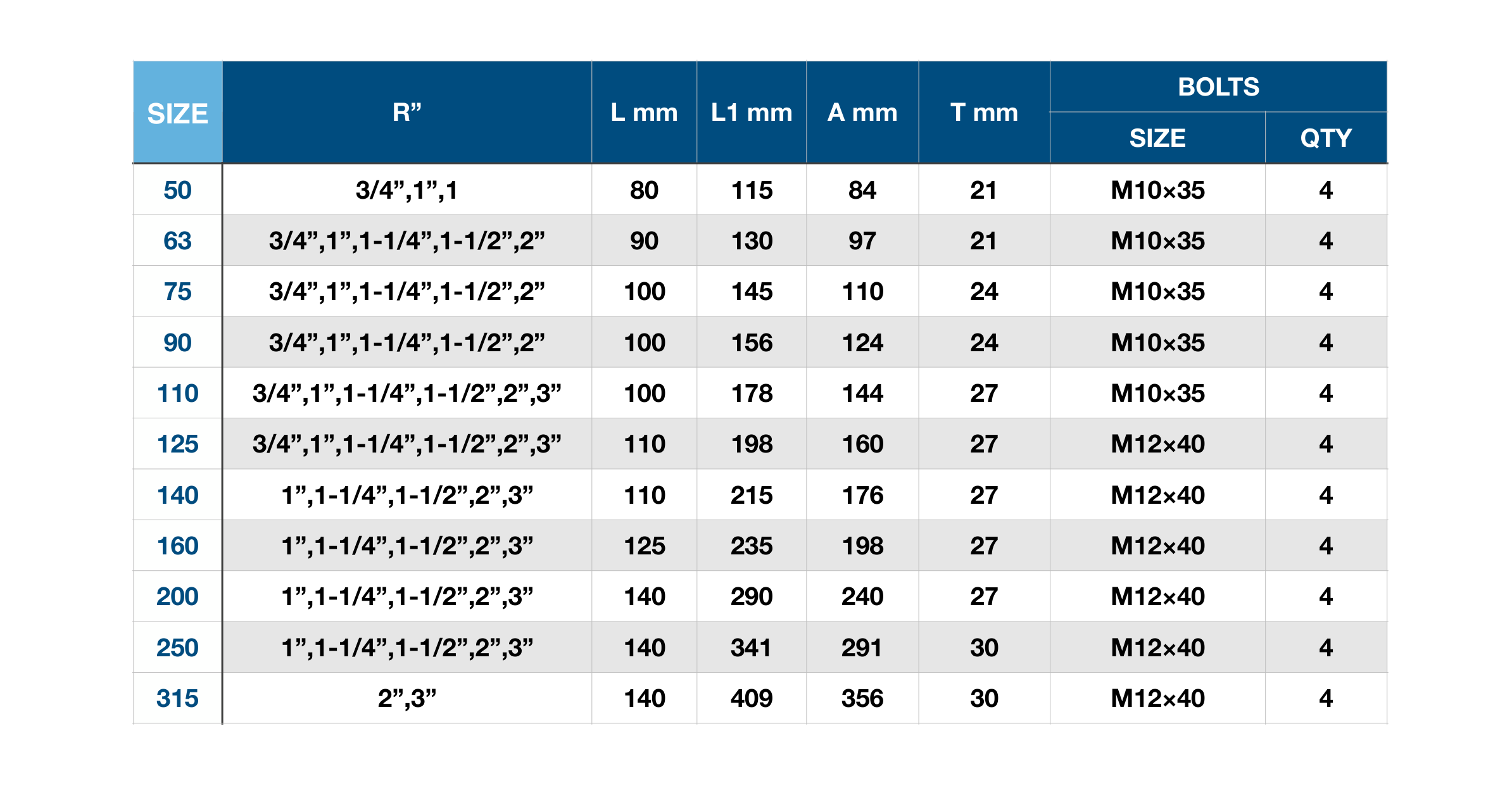

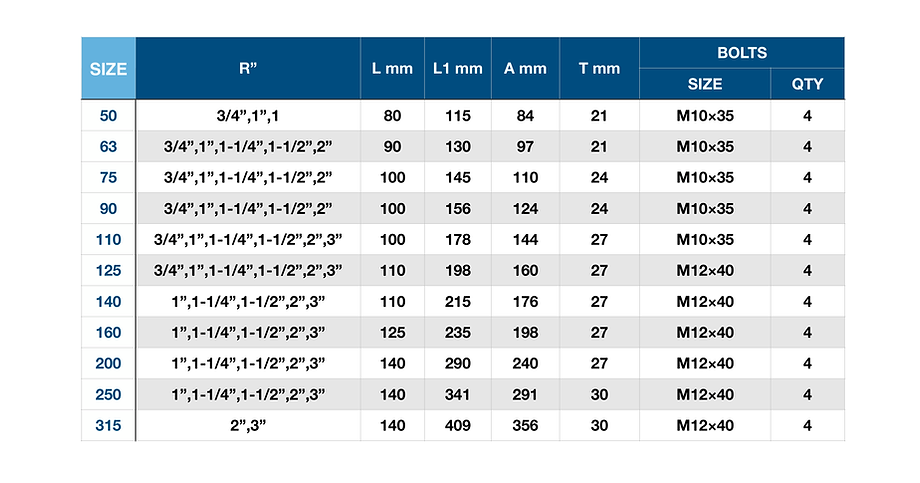

Catalogue dimensions

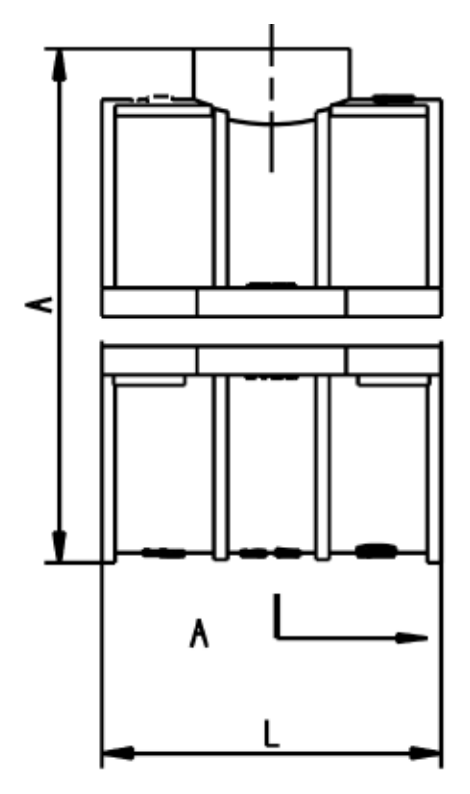

Source: AQUAFITTING English catalogue 2023, page 20. Dimension symbols follow the corresponding source drawing. Confirm the selected configuration and current dimensions before ordering. The size 50 outlet-thread list is incomplete in the source; confirm its outlet before ordering. P20 design only.
| Size | R (in) | L (mm) | L1 (mm) | A (mm) | T (mm) | Bolt size | Bolt Qty |
|---|---|---|---|---|---|---|---|
| 50 | — | 80 | 115 | 84 | 21 | M10×35 | 4 |
| 63 | 3/4”,1”,1-1/4”,1-1/2”,2” | 90 | 130 | 97 | 21 | M10×35 | 4 |
| 75 | 3/4”,1”,1-1/4”,1-1/2”,2” | 100 | 145 | 110 | 24 | M10×35 | 4 |
| 90 | 3/4”,1”,1-1/4”,1-1/2”,2” | 100 | 156 | 124 | 24 | M10×35 | 4 |
| 110 | 3/4”,1”,1-1/4”,1-1/2”,2”,3” | 100 | 178 | 144 | 27 | M10×35 | 4 |
| 125 | 3/4”,1”,1-1/4”,1-1/2”,2”,3” | 110 | 198 | 160 | 27 | M12×40 | 4 |
| 140 | 1”,1-1/4”,1-1/2”,2”,3” | 110 | 215 | 176 | 27 | M12×40 | 4 |
| 160 | 1”,1-1/4”,1-1/2”,2”,3” | 125 | 235 | 198 | 27 | M12×40 | 4 |
| 200 | 1”,1-1/4”,1-1/2”,2”,3” | 140 | 290 | 240 | 27 | M12×40 | 4 |
| 250 | 1”,1-1/4”,1-1/2”,2”,3” | 140 | 341 | 291 | 30 | M12×40 | 4 |
| 315 | 2”,3” | 140 | 409 | 356 | 30 | M12×40 | 4 |
Technical evidence
Review the product identity and available resources, then send the required size or measured outside diameter, pipe material, connection details, operating conditions, quantity, destination and supporting files.
Technical Downloads
Tapping saddle for PVC pipes
Tapping saddle for PVC pipesProduct selection
product name; main pipe outside diameter; main pipe material; outlet or branch requirement; working pressure; whether work is under pressure; quantity; destination
