Two-Piece Ductile Iron Repair Clamp (UU)
Repair a local pipe leak with a two-piece clamp. The split cast body assembles around the pipe. Select against the measured pipe OD, damage extent and required assembly length.
Pipe compatibility
Confirm the pipe material at the repair location. A ductile iron clamp body does not define the compatible pipe materials.
Product overview
Repair a local pipe leak with a two-piece clamp.
Pipe compatibility
Confirm the pipe material at the repair location. A ductile iron clamp body does not define the compatible pipe materials.
Connection arrangement
Clamp around the pipe at the repair location
How the repair assembly works
Split assembly

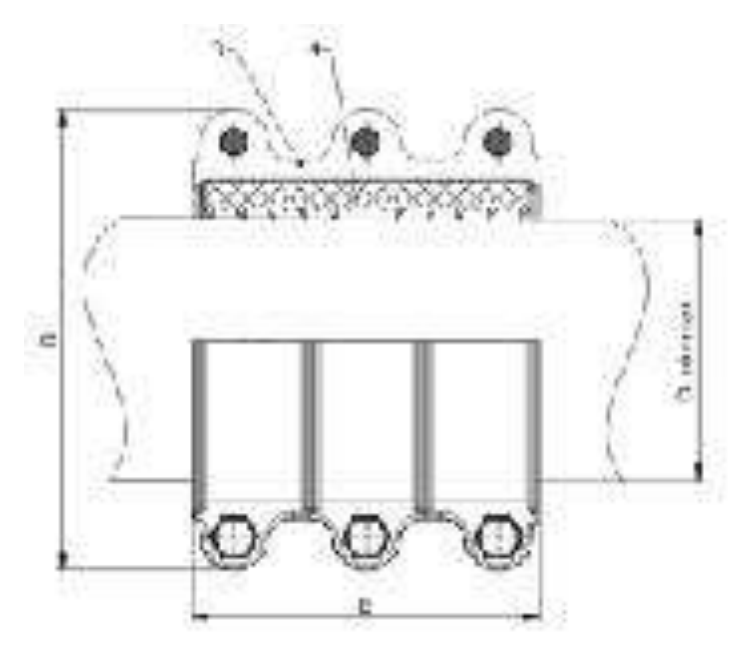

The two-piece cast body is assembled around the pipe. Use the exact UU drawing for the selected size.
Seal and fasteners
Confirm the seal and fastener configuration for the operating conditions and the selected clamp.
Repair coverage
Measure the pipe OD and describe the damage extent. Request the current drawing and installation document for the required assembly length.

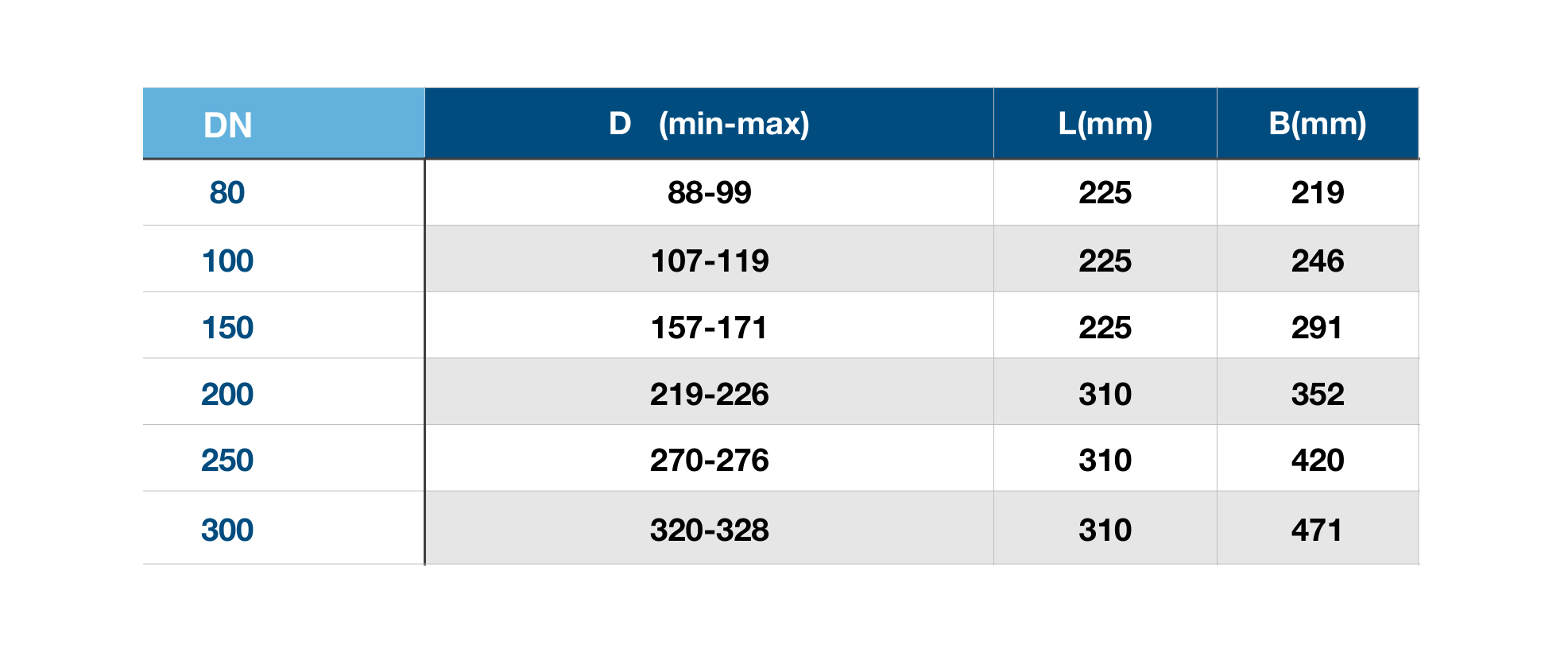

Catalogue dimensions
Catalogue reference dimensions from the AQUAFITTING source drawing currently shown on this page. Confirm the selected configuration and current dimensions before ordering.
Technical evidence
Review the product identity and available resources, then send the required size or measured outside diameter, pipe material, connection details, operating conditions, quantity, destination and supporting files.
Technical Downloads
Product summary · PDF · English · V2026.08 · 97 KB
Previous document name: Universal dual clamp (UU).
Universal dual clamp
Universal dual clampProduct FAQs
What does UU identify?
UU identifies the AQUAFITTING Two-Piece Ductile Iron Repair Clamp in the Pipe Repair Solutions range.
What information is needed for UU selection?
Send the pipe material, measured outside diameter, condition, repair location and operating requirements.
Which UU documents should I request?
Request the current product sheet, dimension drawing and installation document for the exact UU size under review.
Product selection
product name; pipe outside diameter; pipe material; repair or damage condition; repair length if applicable; working pressure; quantity; destination
